Fusion XS Series Marine Subwoofers 010-02198-20
Regular price:
product unavailable
Description

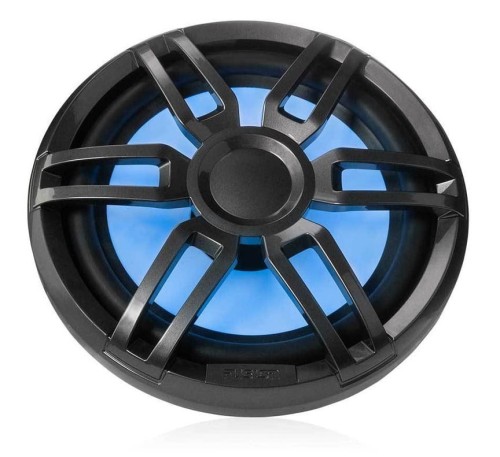

Fusion XS Series Marine Subwoofers 010-02198-20
10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting
SKU: 010-02198-20
EXPERIENCE SOUND AND COLOR
Enjoy high-performance low-end frequencies and multicolor RGB LED lighting with the XS Series subwoofers from Fusion — designed to add another dimension to your on-water audio entertainment experience at a midrange price point.
- Experience multicolor RGB LED lighting to brighten up your boating experience.
- Create a 2.1 audio zone to reduce system cost and simplify installation.
- Enjoy high-resolution bass reproduction from the quality polypropylene cone.
- With an increase in real power, the voice coil provides a high-quality sound experience.
- The subwoofers are available in 10” designs with both classic and sports style grilles.
- Engineered to last season after season, the subwoofers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series subwoofers are designed and built for superior quality and robustness.
VERSATILE SYSTEM INTEGRATION
Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system, such as the Apollo™ Series, without the need for an external amplifier. This helps to reduce system cost and simplifies installation.
INJECTION-MOLDED POLYPROPYLENE CONE (IMPP)
By using a translucent cone, we can incorporate consistent multicolor illumination. It also produces defined, high-resolution low frequencies from the excellent self-damping and bass reproduction.
LARGE DIAMETER VOICE COIL
With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.
HIGH-QUALITY BASKET CONSTRUCTIONThe basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.
MULTICOLOR RGB LED LIGHTING
The sports style XS Series subwoofers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music to enhance your audio entertainment experience.
CONTROLLING THE RGB LIGHTING
Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).
The XS Series sports style subwoofer with RGB LED lighting is available in a 10” size with interchangeable sports white/sports gray grilles and feature multicolor illumination options.
General |
|
| Physical dimensions (Diameter x Depth) |
Classic: 10.79" x 5.59" (274 x 142 mm) Sports: 10.79" x 5.79" (274 x 147 mm) |
| Water and dust rating | IP65 |
| Speaker size | 10" |
| Peak power (Watts) | 600 W |
| RMS power (Watts) | 120 W |
| Sensitivity (1 W / 1 m) | 87 dB |
| Magnetic structure | 41 oz |
| Frequency response | 30 Hz - 2 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 40 - 300 W |
| LED lighting | Yes - RGB (XS-SL10SPGW only) |
| LED Supply Voltage | 10.8-16 VDC (XS-SL10SPGW only) |
| LED load current @ 14.4 VDC | 150 mA (XS-SL10SPGW only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.5" |
| Cone material | Polypropylene cone with rubber surround |
| Compass-safe distance | 146" (370 cm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 8.78" (223 mm) |
| Mounting depth clearance | 4.45" (113 mm) |
Optimum Enclosure Recommendations |
|
| Sealed enclosure volume1 | 1.4 cubic ft (40 L) |
