Fusion MS-BB100 Black Box 010-01517-01
![BB100-Black-Bo-z-przewodowa-kontrola-Bluetooth_[2370]_1200.jpg](/userdata/public/gfx/2803/BB100-Black-Bo-z-przewodowa-kontrola-Bluetooth_2370_1200.jpg)
![BB100-Black-Bo-z-przewodowa-kontrola-Bluetooth_[2371]_1200.jpg](/userdata/public/gfx/2804/BB100-Black-Bo-z-przewodowa-kontrola-Bluetooth_2371_1200.jpg)
Regular price:
product unavailable
Description

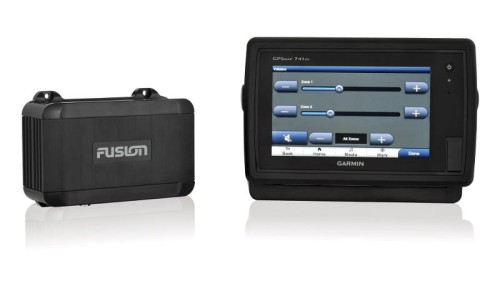

Fusion MS-BB100 Black Box 010-01517-01
- SKU: 010-01517-01
COMPACT BLACK BOX ENTERTAINMENT SOLUTION
There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.
- Compact form factor allows for easy installation on your boat.
- Control the BB100 using the included IPX7 wired remote control.
- Built-in Class-AB amplifier delivers efficiency with reduced distortion.
- Multi-Zone™ technology gives you control of two separate audio zones.
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
BLACK BOX DESIGN
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.
IPX7 WIRED REMOTE CONTROL
An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.
MULTIPLE SOURCE OPTIONS
Take advantage of the many source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.
General |
|
| PHYSICAL DIMENSIONS | Black Box (HxWxD): 2.63" x 6.10" x 3.70" (60 x 155 x 94 mm) Remote (Diameter x Depth): 2.56" x 2.13" (65 x 54 mm) |
|---|---|
| WATER RATING | Black Box: IPX3 (when properly installed) Remote: IPX7 (front panel only, when properly installed) |
| POWER INPUT | 10.8-16 VDC |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX.) | 15 A |
| FUSE | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| BLUETOOTH WIRELESS RANGE | Up to 30 ft (10 m) |
| ANT WIRELESS RANGE | Up to 10 ft (3 m) |
| WIRELESS FREQUENCIES/PROTOCOLS | Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal |
| COMPASS-SAFE DISTANCE | 5.9" (150 mm) |
Stereo Features |
|
| BUILT-IN AMPLIFIER | Class-AB |
|---|---|
| PEAK POWER | 200 W |
| RATED POWER OUTPUT (4 OHM) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | yes (MFD, smartphone and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH WIRELESS TECHNOLOGY | |
| ANT WIRELESS TECHNOLOGY | |
| DAB+ READY | yes (requires DAB100A antenna module) |
| NRX REMOTE COMPATIBILITY | |
| SOFTWARE UPDATES | USB |
| WARRANTY | 1 year |
Sources |
|
| SOURCES | AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/ DAB+ ready (available in Europe and Australia only) |
|---|---|
Connectivity |
|
| AUXILIARY INPUT | 1 RCA input (AUX) |
|---|---|
| NMEA 2000 | 1 port |
| USB 2.0 | 1 port |
| AM/FM RADIO | 1 Motorola antenna connector port |
| SPEAKER | 2 connections (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) |
2 zones (requires external amplification) |
| LINE OUT | 2 (1 x L + R per zone, requires external amplification) |
| SUBWOOFER OUT | 1 x mono output (requires external amplification) |
Files to download:
