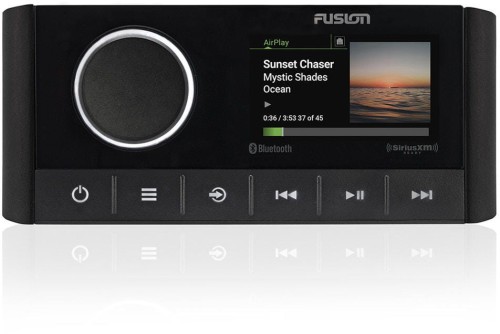

Fusion Apollo MS-RA670 Marine Stereo RA670 010-02138-00
Regular price:
product unavailable
Description
Fusion Apollo MS-RA670 Marine Stereo RA670 010-02138-00
With DSP
SKU: 010-02138-00
AWARD-WINNING INNOVATION REEMBODIED
The Apollo RA670 marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770, reimagined in a compact form factor.
- Custom audio profiles for each zone on your boat to deliver superior quality audio.
- Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate1.
- Experience seamless high-quality audio streaming from your music app the AirPlay® 2 software feature.
- Enjoy the freedom of musical choice with Fusion’s PartyBus™-Network technology.
- Multi-Zone™ Technology gives you control of three separate audio zones.
- Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo RA670 stereo has an IPX6 and IPX7 rated water resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion-Link™ app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.
GAIN WI-FI CAPABILITIES
Connect your Apollo RA670 via Ethernet to a wireless network router, Garmin MFD or Apollo Series stereo network, and enjoy Wi-Fi audio streaming and over-the-air software updates.
AUDIO STREAMING WITH WI-FI
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP).
OVER-THE-AIR SOFTWARE UPDATES
Updates are now available from your compatible smartphone or device, via the free Fusion-Link app. The Apollo Series is intelligently simple and easy to keep up to date.
STEREO GROUPING
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.
VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.
POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.
HOME ZONE
Home Zone is the physical zone onboard your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including AirPlay 2 feature1, BLUETOOTH® technology, UPnP1, optical audio, advanced SiriusXM® features, DAB+ radio, AM/FM radio, AUX and USB connections.
ADVANCED SIRIUSXM FEATURES AVAILABLE
Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.
General
| Physical dimensions | Stereo dimensions (H x W x D): 2.68" x 6.18" x 4.83" (68 x 157 x 123 mm) |
| Weight | 26.5 oz (750 g) |
| Water rating | IPX6 and IPX7 (Front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| Bluetooth wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +13.29 dBm nominal ANT 2.4 GHz @ +6.92 dBm nominal |
| Compass-safe distance | 7.87" (200 mm) |
Stereo Features
| Display | 2.7" optically bonded color LCD |
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |
| Peak power | 280 W |
| Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | yes (wired) |
| Fusion-Link™ control | yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 3 zones |
| Bluetooth wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | yes (requires DAB100A antenna module) |
| Optical audio input | yes |
| NRX remote compatibility | yes |
| Software updates | Over-the-air software updates via the Fusion-Link app*, USB |
| Warranty | 3 years |
Sources
| Sources | AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only) |
Connectivity
| Auxiliary input | One RCA input (AUX) |
| Optical audio input | One digital optical input (SPDIF) port |
| Ethernet | One Ethernet port |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 3 zones (requires external amplification) |
| Line out | 3 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 1 x mono output (requires external amplification) |
*Available when connected to a wireless network router or Apollo Series stereo network enabled with Wi-Fi® technology
