Fusion MS-RA60 Marine Stereo 010-02405-00
Regular price:
product unavailable
Description

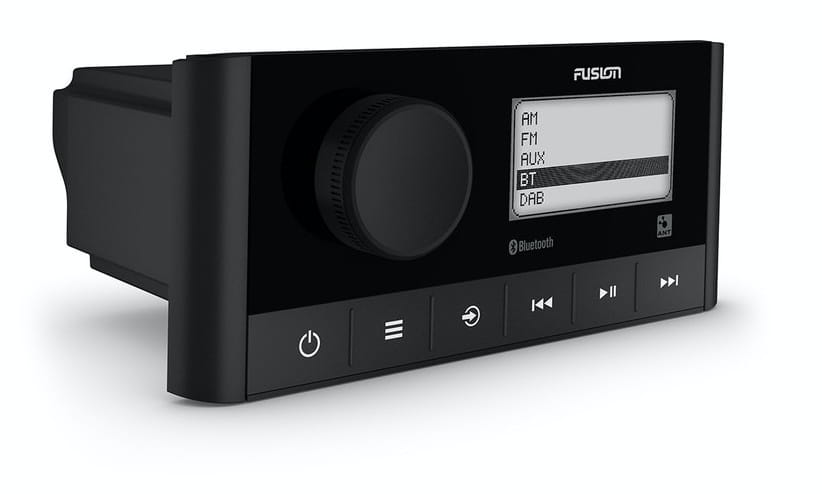

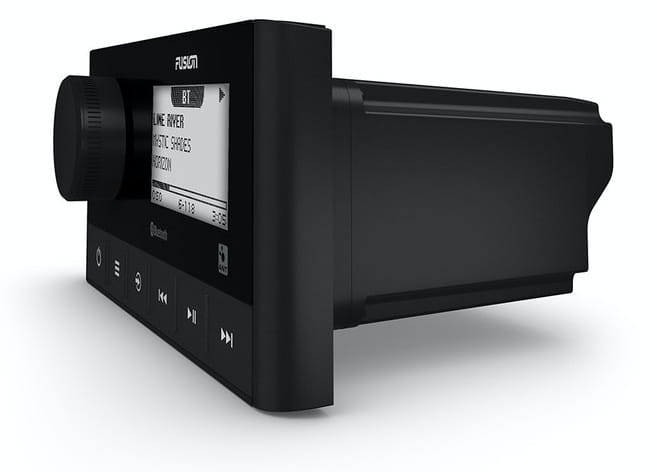

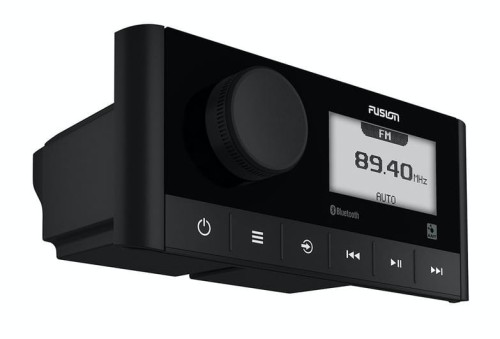

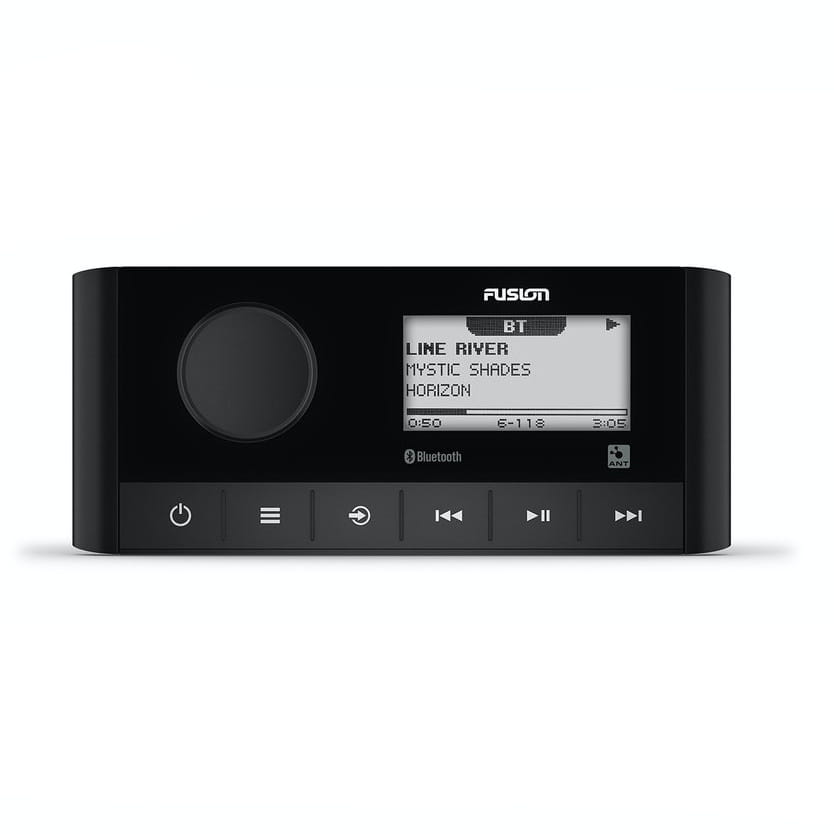

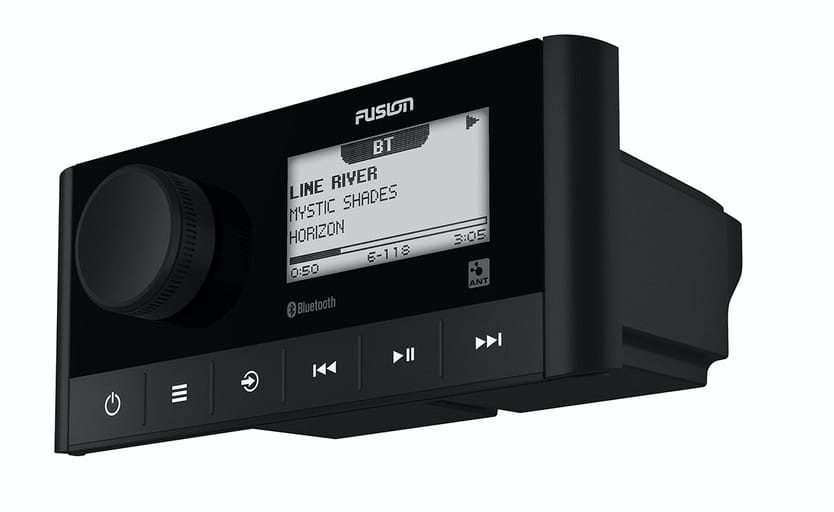

Fusion MS-RA60 Marine Stereo 010-02405-00
SKU: 010-02405-00
MODERN, COMPACT AND ECONOMICAL
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app.
- Multi-Zone Technology gives you control of two separate audio zones.
- Control your music from your compatible smart device or Garmin watch.
MULTIPLE SOURCE OPTIONS
Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.
BUILT-IN DAB TUNER
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported. Simply connect an appropriate AM/FM antenna with no external DAB module required.
General
| Physical dimensions (H x W x D) | 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) |
| Weight | 11.1 oz (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| BLUETOOTH wireless range | Up to 30 ft (10 m) |
| ANT wireless range | Up to 10 ft (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features
| Display | 2.3" perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 ohm) | 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD |
| Fusion-Link™ control | yes (with compatible Apple and Android devices) |
| Fusion-Link Lite control | yes (with compatible Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| DAB+ | yes (DAB tuner built in) |
| Multi-language interface | Dutch/English/French/German/Italian/Spanish |
| Software updates | Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app |
| Warranty | 1 year |
Sources
| Sources | AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) |
Connectivity
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1: L + R (requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
