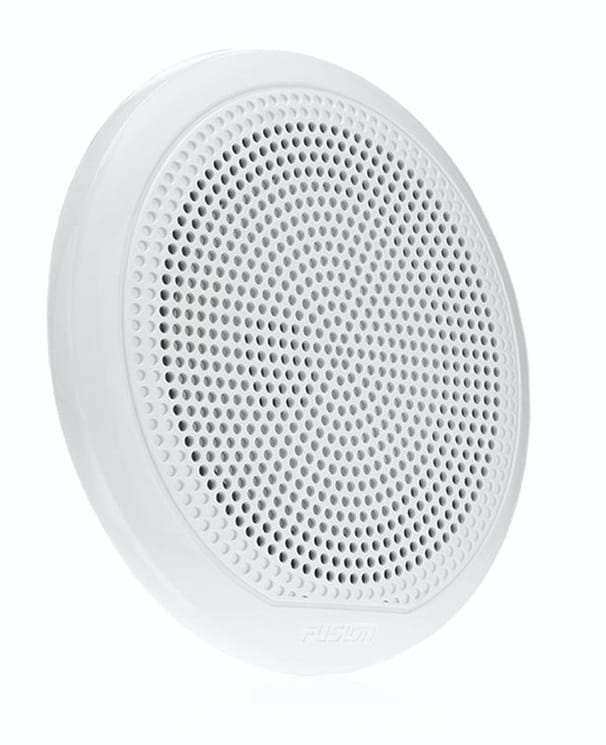

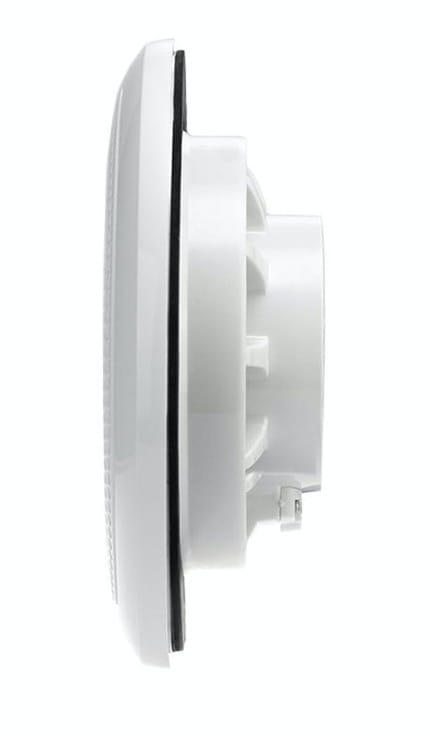

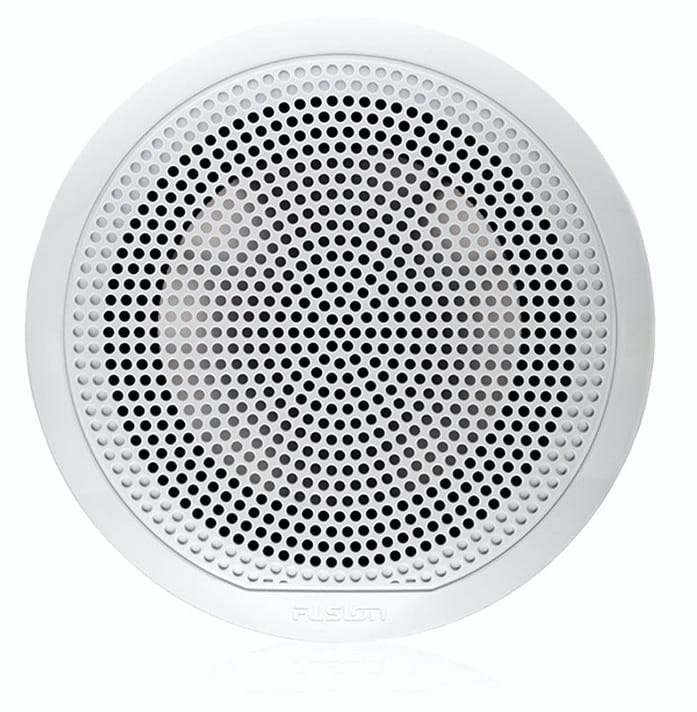

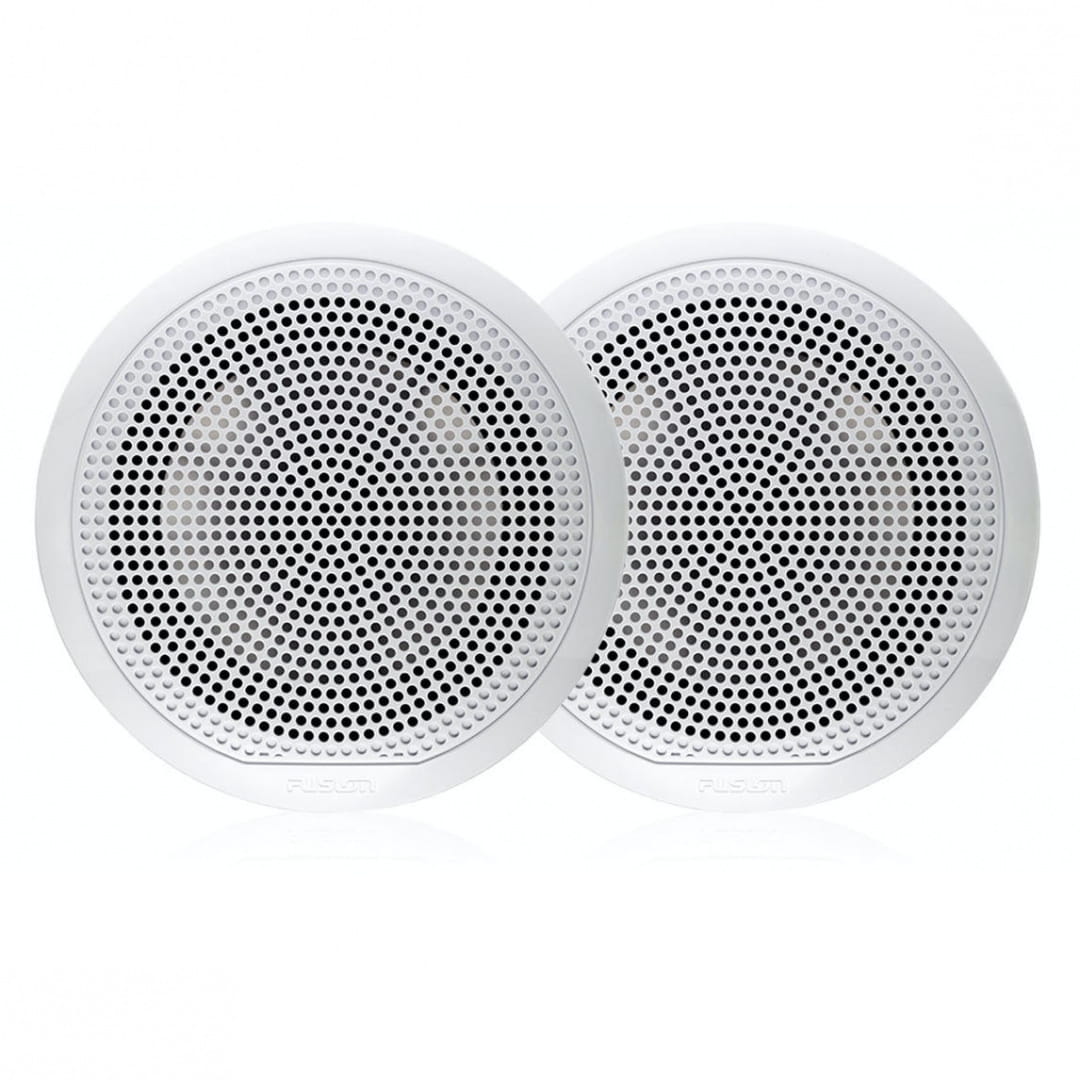

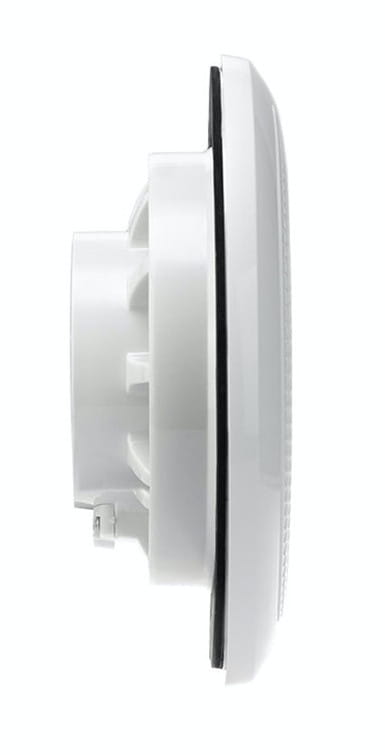

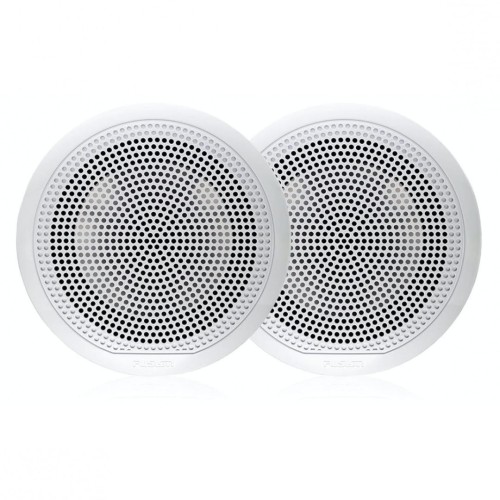

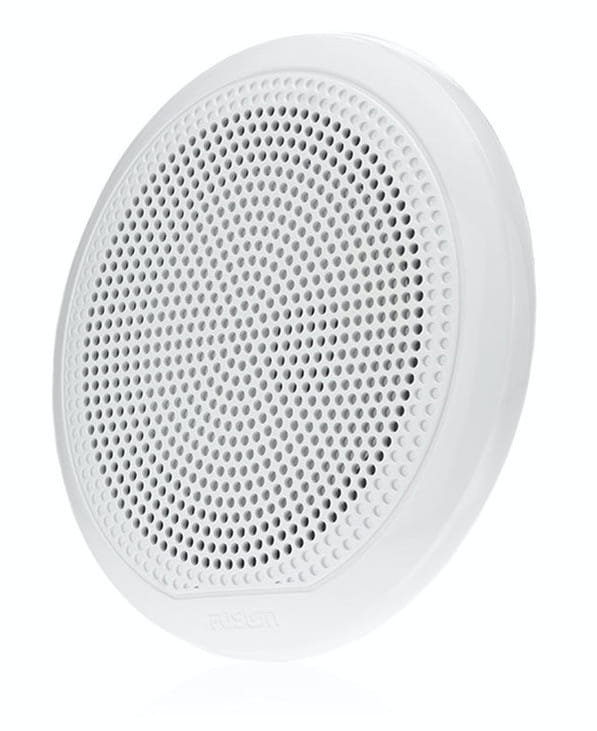

Fusion EL Series 6.5" Marine Speakers 010-02080-00
Regular price:
product unavailable
Description
Fusion EL Series 6.5" Marine Speakers 010-02080-00
6.5" 80-Watt Classic White Marine Speaker (Pair).
SKU: 010-02080-00
- he injection-molded polypropylene cone provides clean, clear audio reproduction.
- The shallow basket design provides increased versatility during installation.
- The speakers are available in a 6.5” design with both classic and sports style grilles.
- Salt fog resistant and UV stable design for the harsh marine environment.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
INJECTION-MOLDED POLYPROPYLENE (IMPP) CONE
By using a translucent, water-resistant IMPP cone, consistent multicolor illumination (sports style only) is integrated into the speaker system. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.
LIGHTWEIGHT VOICE COIL
The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.
The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
General
| Physical dimensions (Diameter x Depth) | 6.93" x 2.32" (176 x 59 mm) |
| Water and dust rating | IP65 |
| Configuration | Full range |
| Speaker size | 6.5" |
| Peak power (Watts) | 80 W |
| RMS power (Watts) | 20 W |
| Sensitivity (1 W / 1 m) | 88 dB |
| Frequency response | 45 Hz-16 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 20-40 W/Ch |
| LED lighting | yes, RGB (sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 16 VDC | 150 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 0.79" |
| Cone material | Polypropylene cone with cloth surround |
| Compass-safe distance | 100" (254 cm) |
| Warranty | 1 year |
Mounting Dimensions
| Mounting diameter clearance | 5.12" (130 mm) |
| Mounting depth clearance | 1.69" (43 mm) |
