Fusion Stereo and Speaker Kits 010-02405-50
Availability:
Zapytaj o dostępność
Price:
1 670,00 zł
Regular price:
product unavailable
Description

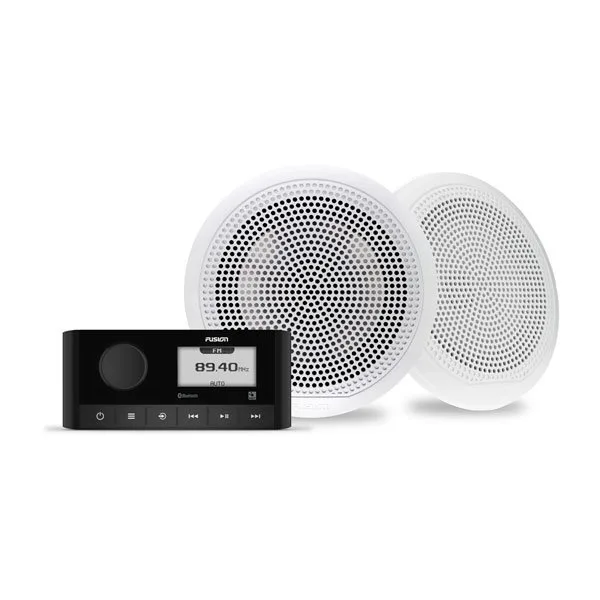

Fusion Stereo and Speaker Kits 010-02405-50
MS-RA60 and EL Classic Speaker Kit.
- SKU: 010-02405-50
EVERYTHING YOU NEED TO AMPLIFY THE MOMENT
Outfit your boat with an exceptional sound system. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
- Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
- Built-in Class D amplifier brings aboard higher efficiency and greater output.
- Multi-Zone™ Technology makes you the captain of two separate audio zones.
- Conveniently update software via BLUETOOTH® technology2 from the Fusion-Link™ app on your compatible smart device.
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifier
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water
Stereo Specifications |
|
|
Physical dimensions (HxWxD) |
MS-RA60: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm) MS-RA210: 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm) |
| Weight | MS-RA60: 11.1 oz (316 g) MS-RA210: 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | MS-RA210: 1 (50 mA) |
| BLUETOOTH® wireless range | Up to 30 ft (10 meters) |
| ANT wireless range | Up to 10 ft (3 meters) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
| Display | MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD MS-RA210: 2.7" optically bonded color LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | MS-RA210: 200 W MS-RA60: 180 W |
| Rated power output (4 ohm) | MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | MS-RA210: yes (with preconfigured DSP profiles) |
| Fusion-Link™ control | MS-RA60: yes (with smartphone and Garmin watch) MS-RA210: yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | MS-RA210: yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | MS-RA60: yes (DAB tuner built in) MS-RA210: yes (requires DAB100A antenna module) |
| NRX remote compatibility | MS-RA210: yes |
| Multi-language interface | MS-RA60: Dutch, English, French, German, Italian, Spanish MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech Danish, Dutch, English, Finnish, French, German, Greek Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | MS-RA60: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app MS-RA210: USB |
| Warranty | 1 year |
| Sources | MS-RA60: AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) MS-RA210: AM/FM/BLUETOOTH/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | MS-RA210: 1 port |
| USB 2.0 | MS-RA210: 1 port |
| SiriusXM satellite radio | MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | MS-RA60: 4 speaker connections (2 zone amplified) MS-RA210: 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | MS-RA60: 1 zone (requires external amplification) MS-RA210: 2 zones (requires external amplification) |
| Line out | MS-RA60: Zone 1 (L + R, requires external amplification) MS-RA210: Zone 1, Zone 2 (1 x L + R, requires external amplification) |
| Subwoofer out | MS-RA60: Zone 1 (requires external amplification) MS-RA210: Zone 1, Zone 2 (requires external amplification) |
Speaker Specifications |
|
| Physical dimensions (HxWxD) | EL Speaker: 6.93" x 2.32" (176 x 59 mm) XS Classic Speaker: 6.97" x 3.19" (177 x 81 mm) XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm) |
| Water rating | IP65 |
| Configuration | EL Speaker: Full range XS Speaker: Coaxial |
| Speaker size | 6.5" |
| Peak power (watts) | EL Speaker: 80 W XS Speaker: 200 W |
| RMS Power (watts) | EL Speaker: 20 W XS Speaker: 50 W |
| Sensitivity (1 watt/1 meter) | EL Speaker: 88 dB XS Speaker: 91 dB |
| Frequency response | EL Speaker: 45 Hz-16 kHz XS Speaker: 80 Hz-18 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (RMS) | EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | EL Speaker: 0.79" XS Speaker: 1.18" |
| Cone material | Polypropylene cone with cloth surround |
| Tweeter type | XS Speaker: Aluminum dome |
| Compass-safe distance | EL Speaker: 100" (254 cm) XS Speaker: 122" (310 cm) |
| Warranty | EL Speaker: 1 year XS Speaker: 3 years |
| Mounting diameter clearance | EL Speaker: 5.12" (130 mm) XS Speaker: 5.31" (135 mm) |
| Mounting depth clearance | EL Speaker: 1.69" (43 mm) XS Speaker: 2.64" (67 mm) |
| Sealed enclosure volume | XS Speaker: 0.28 cubic ft (8 L) |
