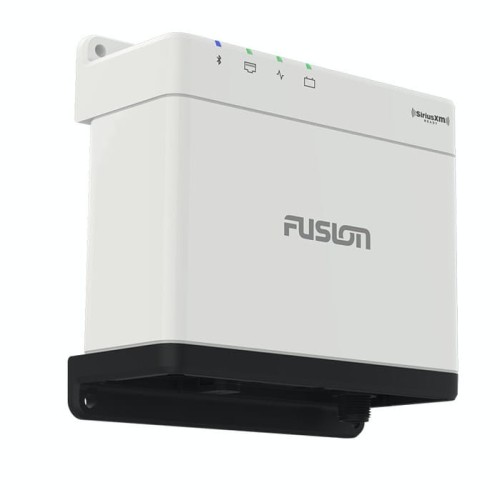

Fusion Apollo MS-WB670 Marine Hideaway Stereo 010-02346-00

Fusion Apollo MS-WB670 Marine Hideaway Stereo 010-02346-00

With DSP
SKU: 010-02346-00

THE SUM OF AUDIO INNOVATION REIMAGINED
The Apollo WB670 marine stereo inherits key audio innovations and technological brilliance from Apollo RA670, reengineered in a compact, space-saving form factor designed to simplify dash space.

• Custom audio profiles for each zone on your boat to deliver superior quality audio.
• Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate.
• Experience seamless high-quality audio streaming from your music app the AirPlay® 2 software feature.
• Enjoy the freedom of musical choice with Fusion’s PartyBus™-Network technology.
• Multi-Zone™ Technology gives you control of three separate audio zones.
• Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion®, the Apollo WB670 stereo has been tested to a high level of protection against salt, fog, temperature, vibration and UV.

COMPACT DESIGN
Designed to save space at the helm, Apollo WB670 can be hidden away in the dash or mounted in a variety of areas such as storage lockers, inside helm consoles and other concealed compartments.

FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES
With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion-Link™ app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.

GAIN WI-FI CAPABILITIES
Connect your Apollo WB670 via Ethernet to a wireless network router, Garmin MFD or Apollo Series stereo network, and enjoy Wi-Fi audio streaming and over-the-air software updates.

STEREO GROUPING
Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.

VOLUME CONTROL
Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.

POWER OPTIONS
Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.

HOME ZONE
Home Zone is the physical zone onboard your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including AirPlay 2 feature1, BLUETOOTH® technology, UPnP1, optical audio, advanced SiriusXM® features, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE
Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.

AUDIO STREAMING WITH WI-FI
In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple® and universal plug-and-play (UPnP).

OVER-THE-AIR SOFTWARE UPDATES
Updates are now available from your compatible smartphone or device, via the free Fusion-Link app. The Apollo Series is intelligently simple and easy to keep up to date.



FULL CONTROL FROM YOUR APOLLO ERX400 REMOTE
Control the Apollo WB670 stereo by connecting an Apollo ERX400 wired remote via Ethernet, and enjoy the full Apollo user experience including PartyBus™-Network functionalities.

CONTROL FROM A COMPATIBLE MFD
Are you looking for a more streamlined system? You can connect Apollo WB670 to a compatible MFD using an Ethernet or NMEA 2000® network connection without the need for an additional wired remote.

CONTROL MORE AUDIO ZONES
Control up to six independent audio zones by connecting two Apollo WB670 stereos via Ethernet to a router or Ethernet switch. You’ll be able to control both Apollo WB670 stereos from a single Apollo ERX400 wired remote.

General

Physical dimensions	Stereo Dimensions (H x W x D): 5.1" x 5.1" x 2.17" (130 x 130 x 55  mm)
Weight	16.75 oz (475 g)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
NMEA 2000 LEN	1 (50 mA)
Bluetooth wireless range	Up to 30 ft. (10 m)
ANT wireless range	Up to 10 ft. (3 m)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance	5.9" (150 mm)

Stereo Features

Built-in amplifier	Class-D (2 Ohm stereo-stable)
Peak power	280 W
Rated power output (2 Ohm)	43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm)	26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	Yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities	Yes (wired)
Fusion-Link™ control	Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology	3 zones
Built-in Wi-Fi	No
Bluetooth wireless technology	Yes
ANT wireless technology	Yes
SiriusXM-ready	Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready	Yes (requires DAB100A antenna module)
Optical audio input	Yes
NRX remote compatibility	Yes
Multi-language interface
Software updates	Over-the-air software updates via the Fusion-Link app* USB
Warranty	3 years

Sources

Sources

AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)

Connectivity

Auxiliary input	One RCA input (AUX)
Optical audio input	One digital optical input (SPDIF) port
Ethernet	One Ethernet port
NMEA 2000	One NMEA 2000 port
USB 2.0	One USB 2.0 port
SiriusXM satellite radio	One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio	One Motorola antenna connector port
Speaker	4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer)	3 zones (requires external amplification)
Line out	3 (1 x L + R per zone, requires external amplification)
Subwoofer out	1 x mono output (requires external amplification)
