Digital Shunt Module SCQ25 Simarine S003

Digital Shunt Module SCQ25 Simarine S003

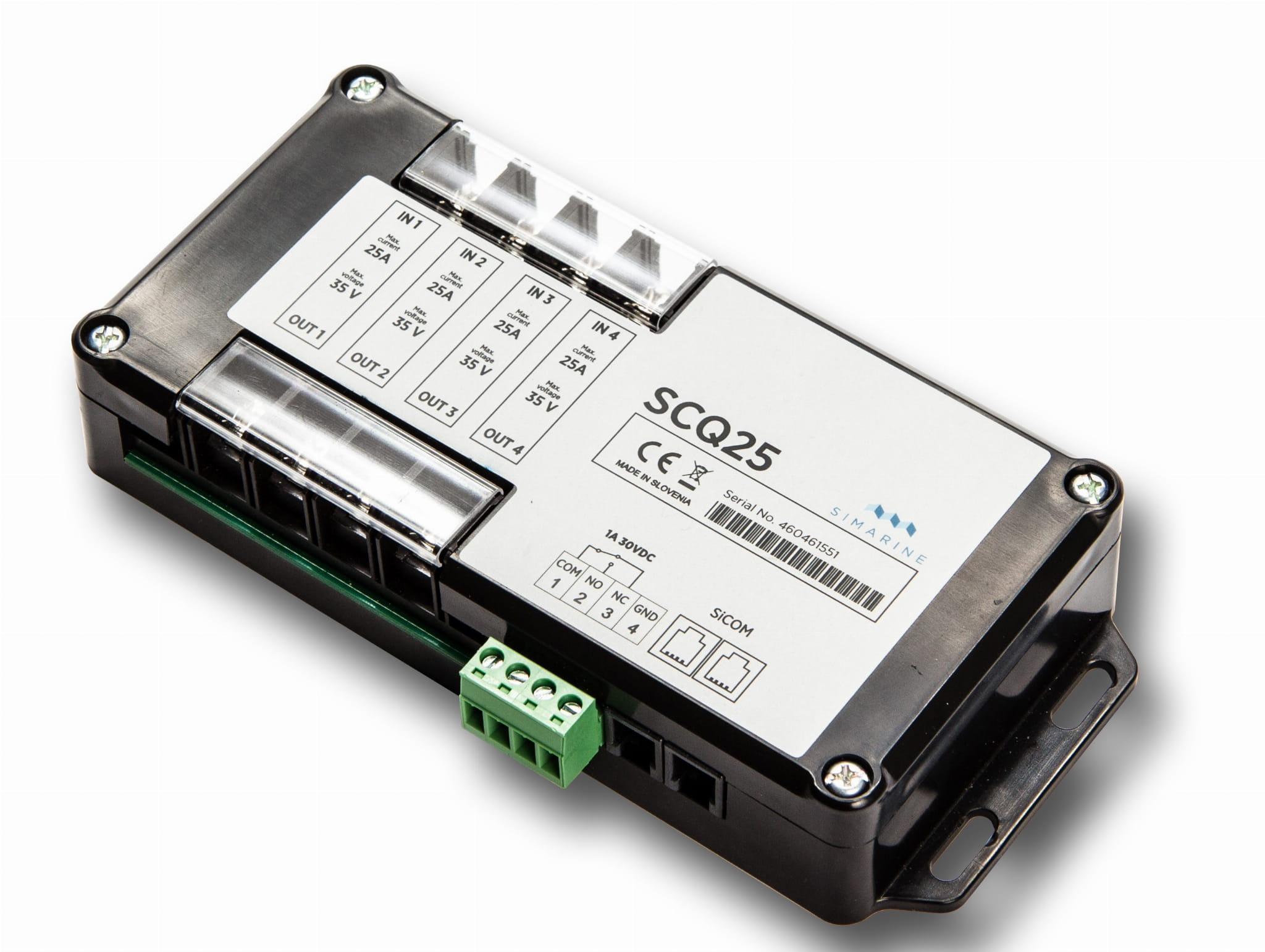

SCQ25 is an innovative shunt module with four inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input on 12V and 24V systems.

That is very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power. The current channels can be combined for higher amperage, meaning the continuous currents on the combined channels up to 50A (70A peak) on 12V and 24V volts.

SCQ25’s innovative protected architecture allows wiring in either negative (low) or positive (high) side. Up to five modules can be connected simultaneously to monitor up to 20 current channels (only on PICO Battery Monitor).

Specification:

• SKU: S003
• 4 x current sensors up to 25A each. For 12V and 24V systems
• Voltage range 6 – 35 V
• Temperature range -20 – +70 °C

Power consumption at 12V

• Operating 3,5 mA
• Current measuring channels 4

Current measuring range

• Per channel 0,01 – 50 A
• Accuracy ± 0,6 %
• Resolution 0,01 A
• Sampling rate 100 ms

Maximal current

• Continuous 25 A
• Peak current (35 A
• Peak current (50 A
• Voltage drop at 25 A 35 mV
• Maximal voltage on connections 35 V
