PICO Battery Monitor Simarine P003

PICO Battery Monitor Simarine P003

SIMARINE PICO sets new standards for marine battery monitors in fields of design, functionality, connectivity and ease of use.

The casing of the main is CNC-milled from a single piece of high quality 6000 series anodized aluminium (corrosion-proof).

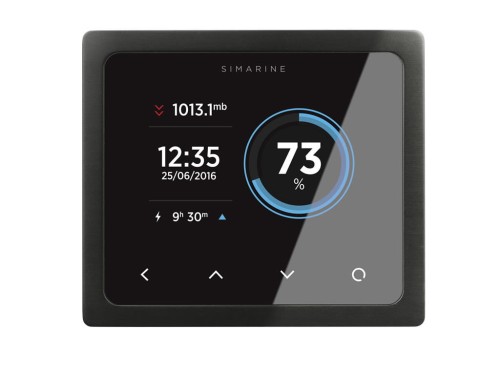

The display is covered with thick Gorilla Glass with Anti-Reflective coating. To improve the overall image quality and to prevent the condensation, the cover glass is optically bonded with high contrast 3.5'' inch IPS LCD screen with wide viewing angles and good sun legibility, also with polarized sunglasses. The casing is water- and dustproof, compliant with the standard IP67.
The device is operated by four water tolerant Capsense touch buttons.

PICO battery monitor can monitor up to 6 battery banks, 14 tanks and 20 independent current sensors.
Thanks to our unique Real Time Battery Health™ algorithm we offer precise battery health measurements.

PICO is equipped with a Wi-Fi module and communicates with Android and iOS smartphones. All the data on PICO are accessible on a smartphone. You can also restore the settings stored on your smartphone and perform a firmware upgrade of PICO.

General specification:

Display: LCD TFT 3,5'' High resolution IPS, Gorilla Glass, anti-reflective coating
Human interface: 4 Touch buttons, water resistant
Enclosure: CNC-milled anodized aluminium, water- and dustproof
Dimensions: HxWxD 98 x 84 x 11 mm

Technical specifications

• Operating voltage: 6 - 35 V
• Power consumption at 12V
• Operating, wifi on, 100% illumination: 90 mA
• Operating, wifi off, 70% illumination: 35 mA
• Stand by, wifi off, 0% illumination: 18 mA
• Power off, logger still active: 5 mA

Number of connections

• Battery banks: 6
• Current sensor channels: 20
• Temperature sensors: 10Tank level sensors: 14

Logger capacity: device: (average) 3 month on device; mobile app:  unlimited
