Digital Shunt 500A Simarine SC503
Regular price:
product unavailable
Description

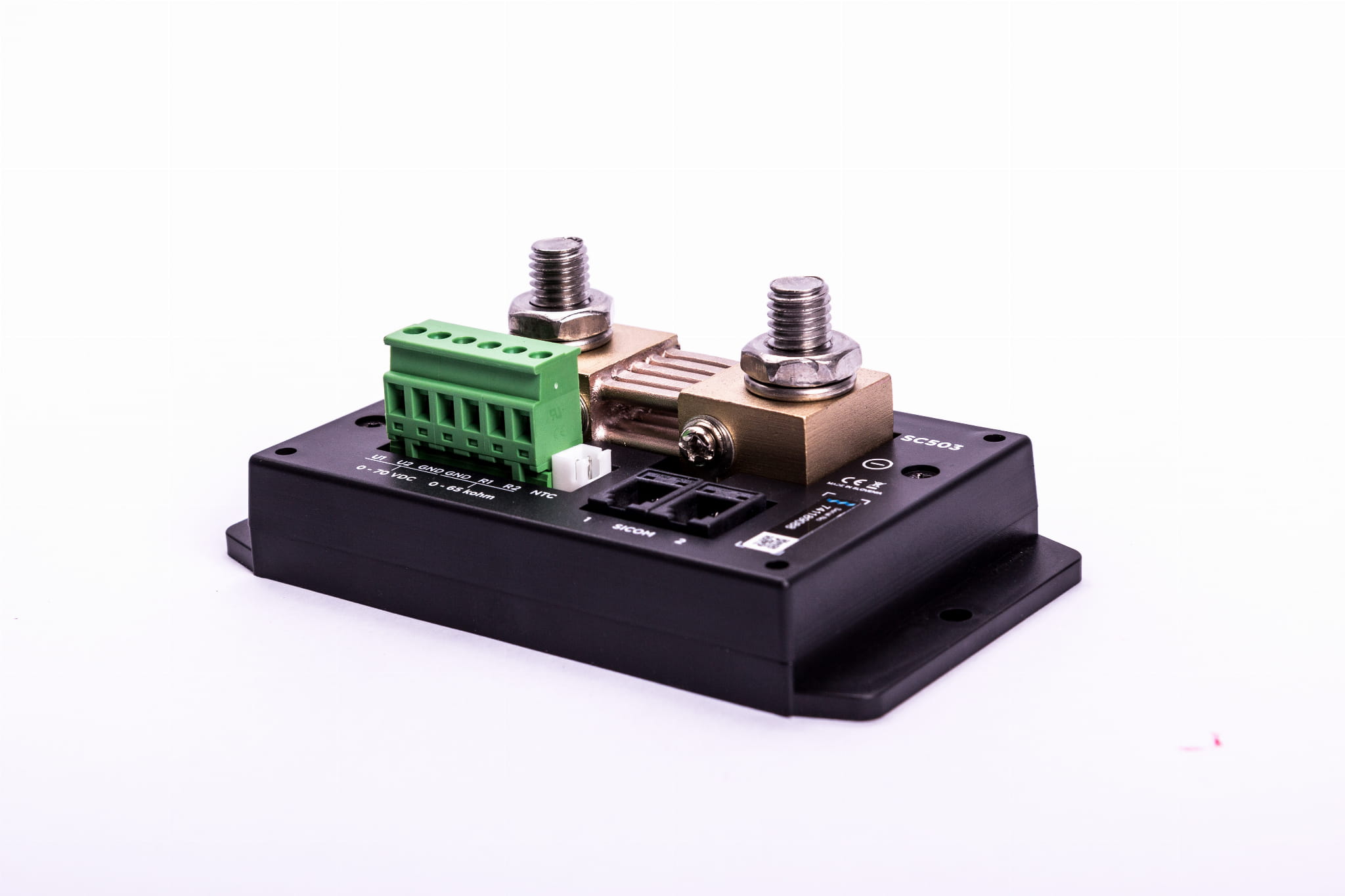

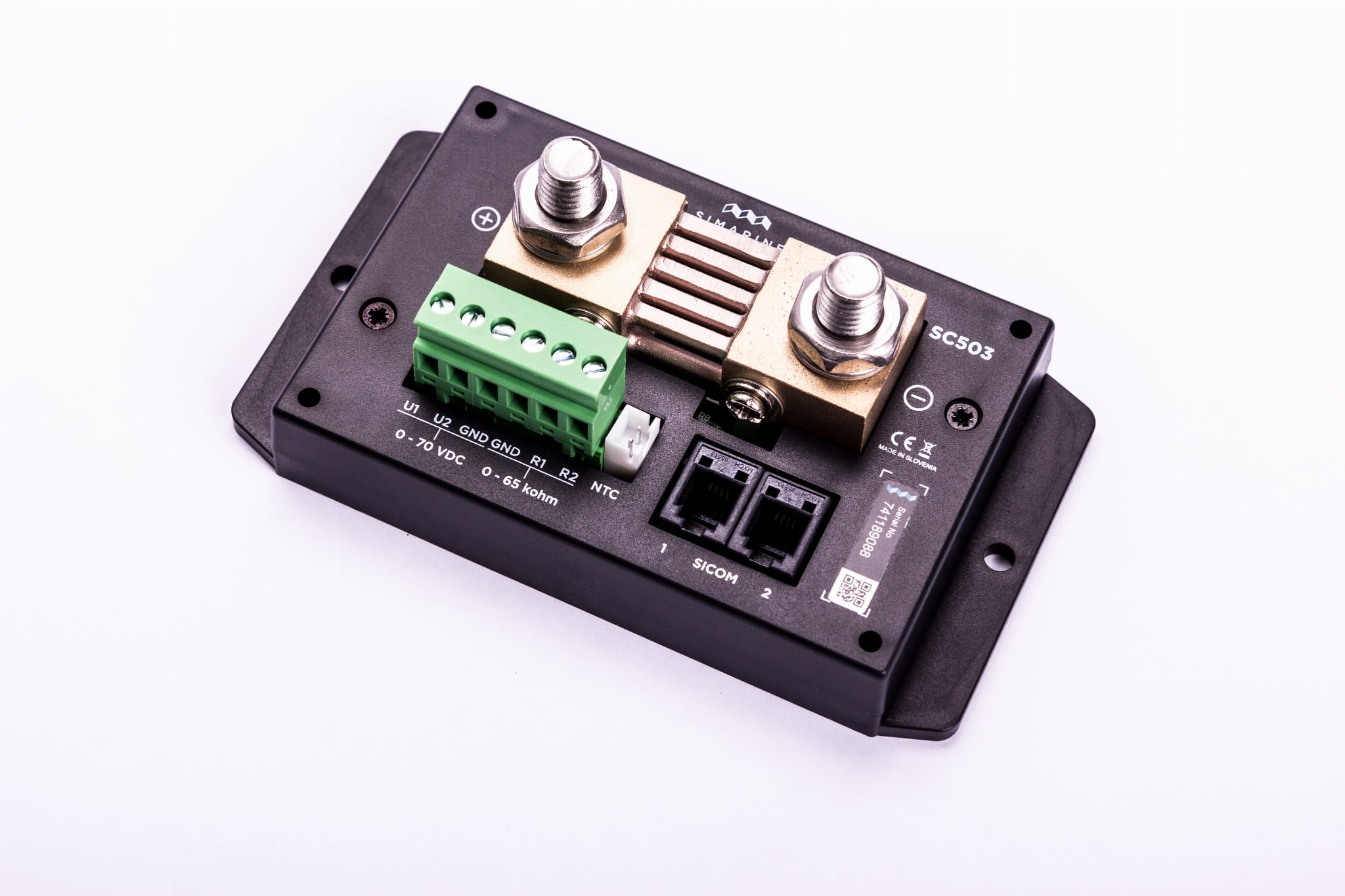

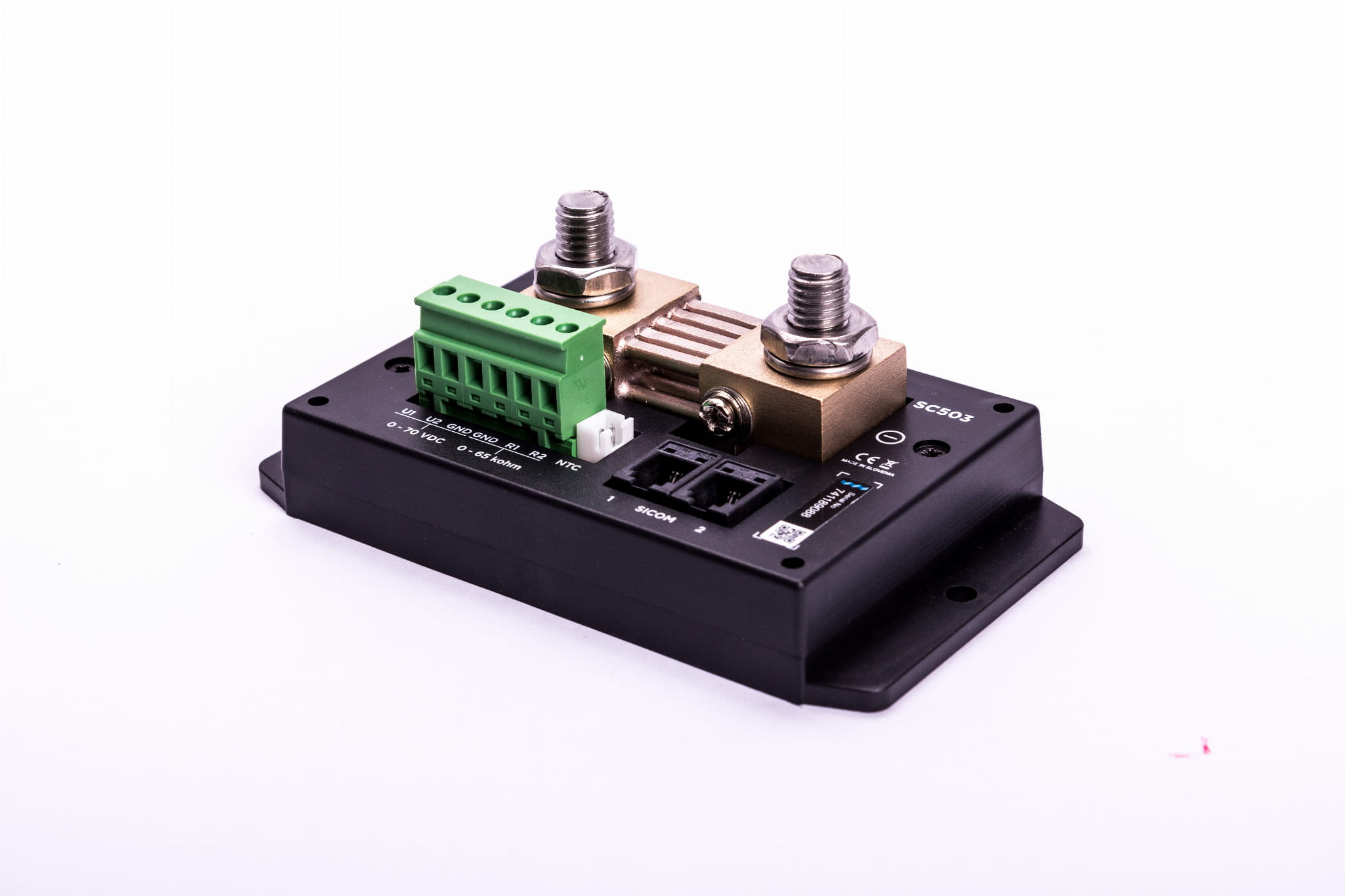

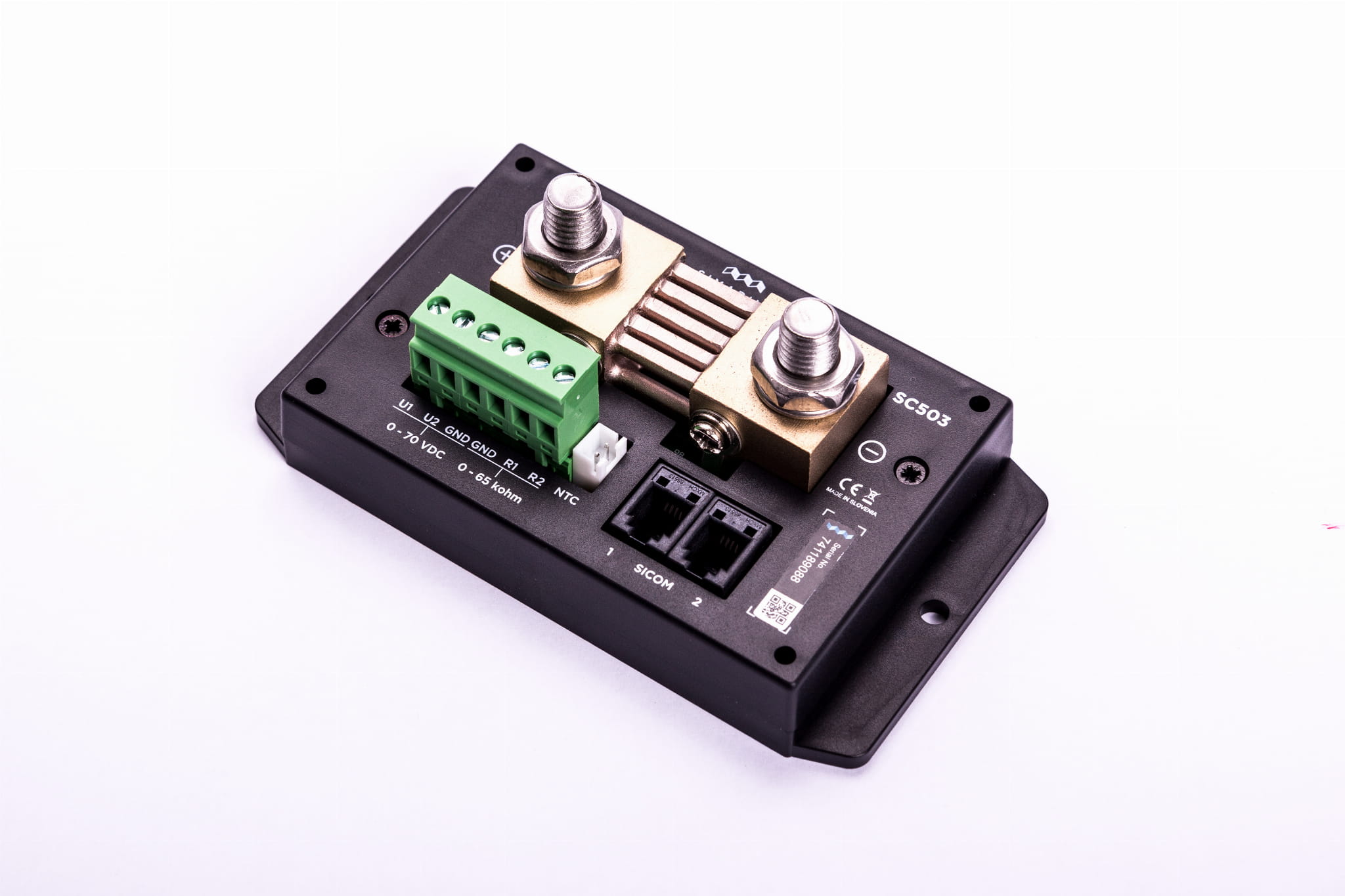

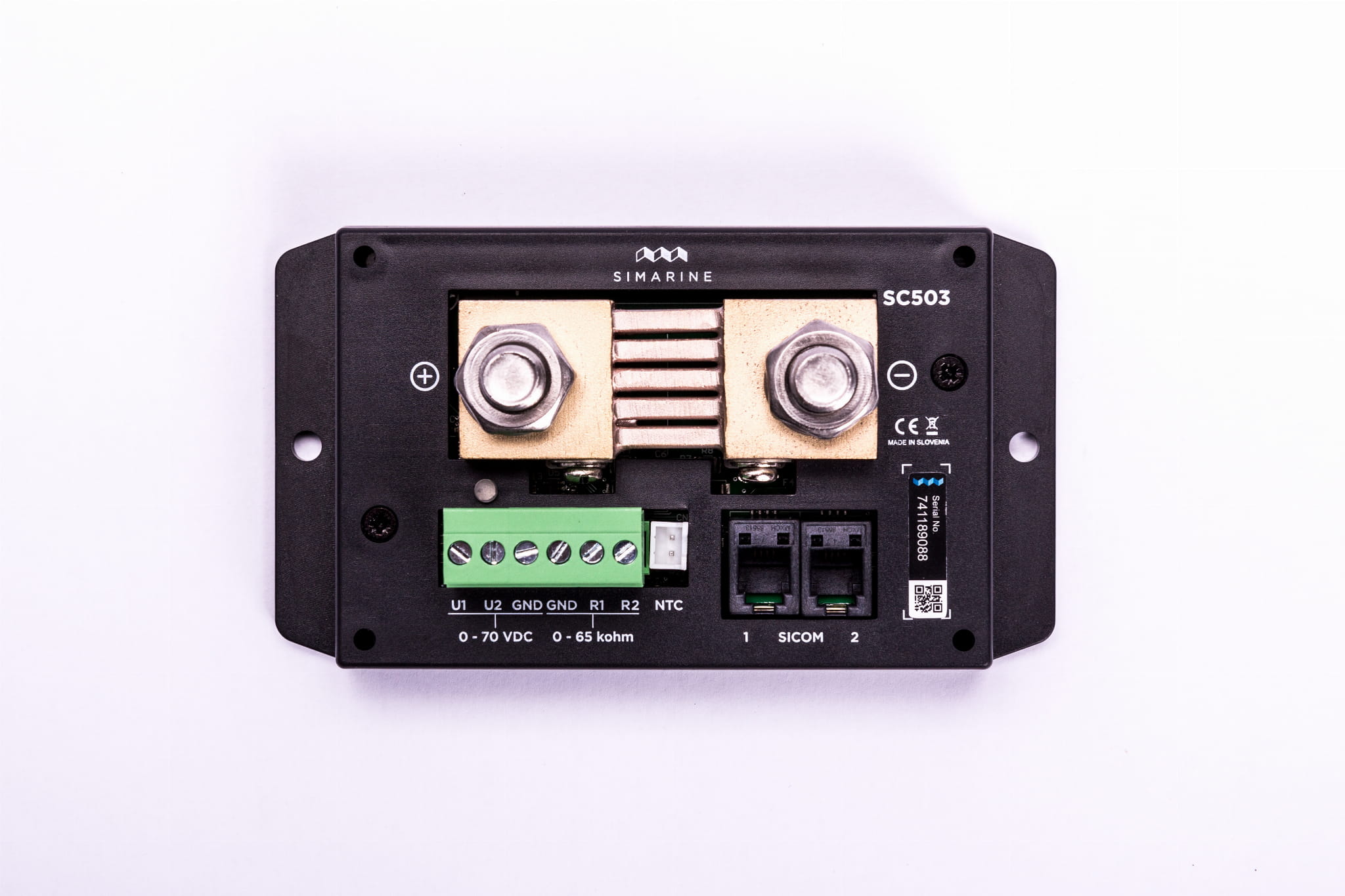

Digital Shunt 500A Simarine SC503
-
SC503 is an innovative combination of shunt and tank level module. SC503 active combo shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 500A (600A peak). It’s suitable for maximal power of 7200W at 12V, 14400W at 24V or 28800 at 48V…
It is equipped with one additional battery voltage input (2 in total). The integrated tank level has 2 resistance type inputs for monitoring tank level or temperature and an additional JST socket for temperature sensor with an JST connector. Additionally, the SC503 module can also be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generated on generators like shore power chargers, solar panels, hydro- and wind generators.
SC503’s innovative protected architecture allows wiring in either negative (up to 72V) or positive (up to 24V) side.
Features
- MAXIMUM CONNECTIONS
- 2x voltage
- 2x temperature
- 1x JST socket (temperature sensor)
- 1x current sensor up to 500A for up to 75V systems
Files to download:
Shipping costs
The price does not include any possible payment costs
