Rope Cutter Prop Protector 30 mm SOM005
Regular price:
product unavailable
Description

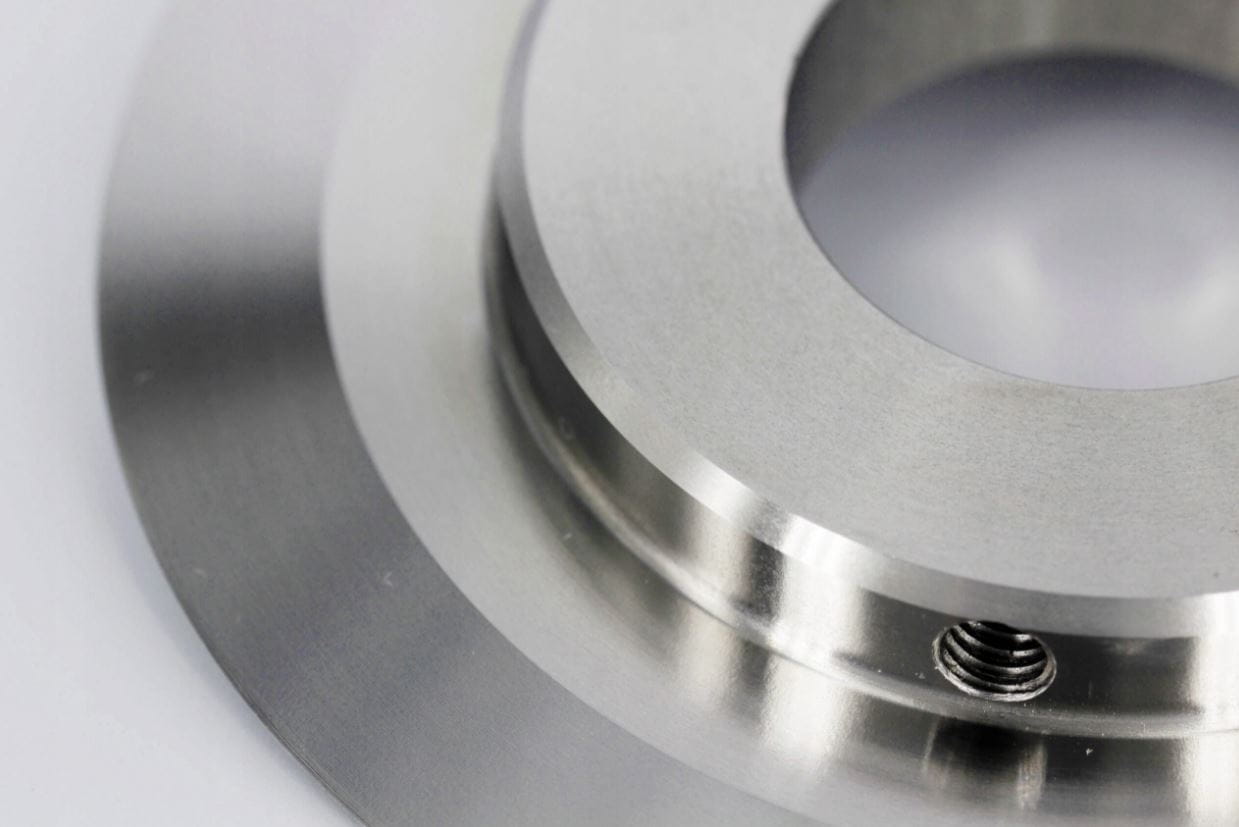

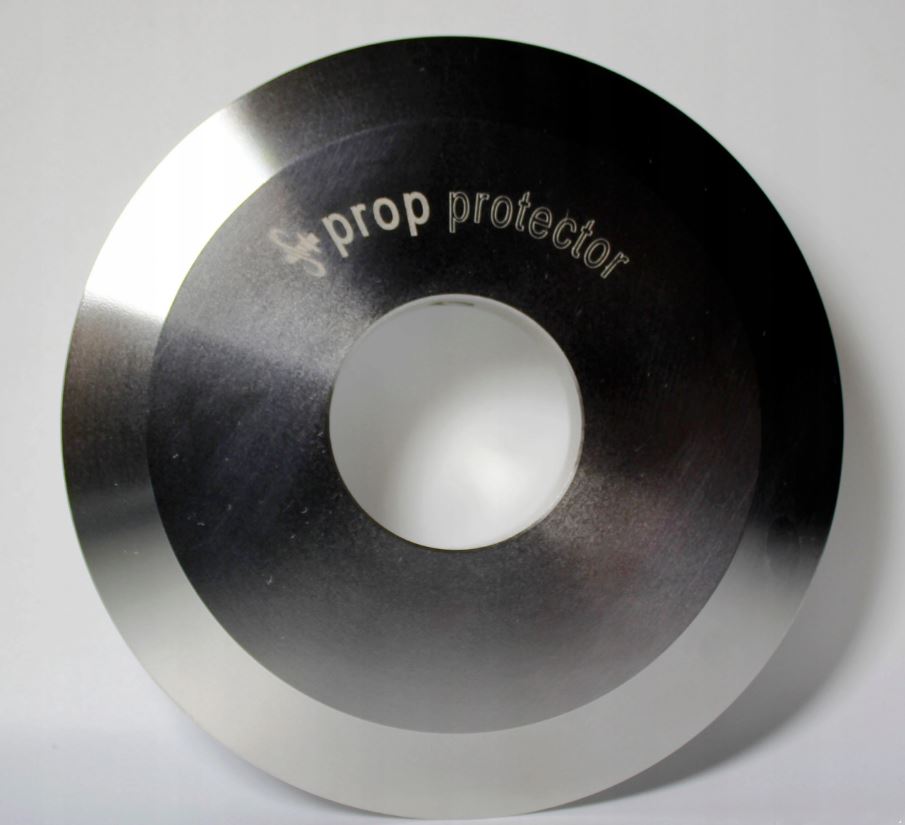

Rope Cutter Prop Protector 30 mm SOM005
Manufactured in one piece with a width of only 12 mm (0.47″), the Slide-On is designed for installations where the gap between the propeller and the shaft bearing is small.
A total gap of only 18 mm (0.7″) is sufficient for installation; this includes 6 mm (1/4″) of space for water to circulate to the shaft bearing.
After removing the propeller, the cutter simply slides onto the shaft and is secured with a set screw that locates into a small pre-drilled dimple made in the shaft using a 6 mm HSS drill bit.
This version of Prop Protector is available for shafts of 20 mm diameter up to 55 mm.
Specifications:
- SKU: SOM005
- Shaft Diameter: 30 mm
- Diameter Blade: 80 mm
