Combo Digital Shunt SC502T Simarine S006
Regular price:
product unavailable
Description

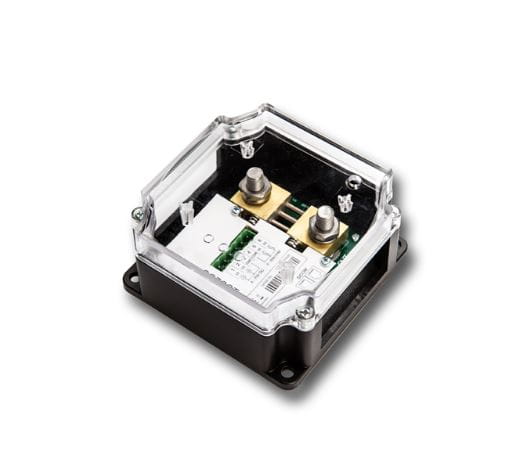

Combo Digital Shunt SC502T Simarine S006
SC502T is an innovative combination of shunt and tank level module. SC502T active combo shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 500A (600A peak). It’s suitable for maximal power of 7200W at 12V, 14400W at 24V or 28800 at 48V…
It is equipped with one additional battery voltage input (2 in total).
The integrated tank level module has 2 resistance-type inputs for monitoring tank level and temperature sensors. Additionally, the SC502T module can also be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generated on generators like shore power chargers, solar panels, hydro- and wind generators.
SC502T’s innovative protected architecture allows wiring in either negative (up to 72V) or positive (up to 24V) side.
Features
- MAXIMUM CONNECTIONS
- 2 x voltage
- 2 x temperature
- 1 x current sensor up to 500A for up to 75V systems
Files to download:
