TruDesign T-Piece Connector 90893

TruDesign T-Piece Connector 90893

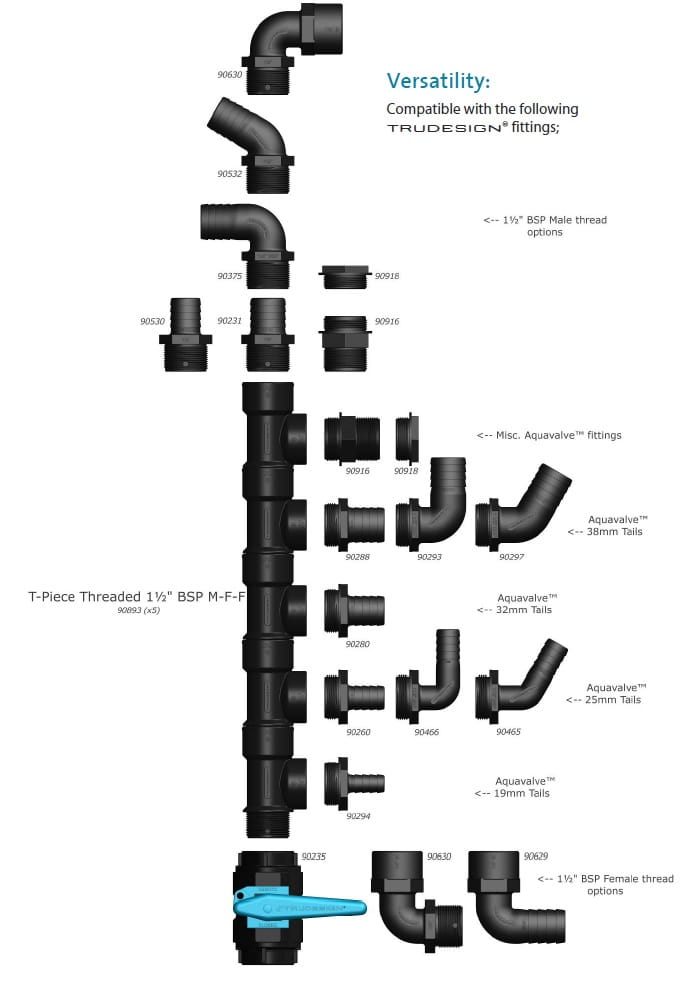

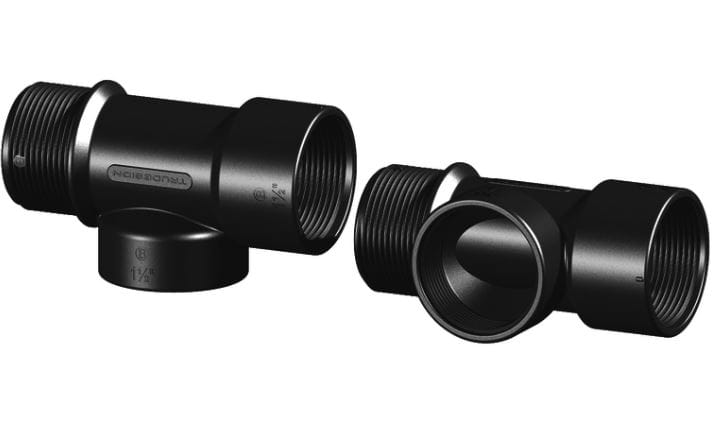

The 1½" Threaded T-Piece features 2x Female threads and 1x Male thread enabling them to be joined together to create manifolds - useful for multiple hose connections to a single Ball Valve & Thru-hull fitting.
The centre female thread is shorter and designed for use with Aquavalve Tails (Straight, 90°, and 120°) giving the option of tail sizes from 19mm up to 38mm. The Plug, or Threaded Connector can also be used in the centre connection.
NOTE: all Aquavalve Tails that are used with the T-Piece do not face-seal using the Red or Blue washer as they do when used in Aquavalves. Instead, use a suitable thread sealant or PTFE tape to seal threads.

• Manufactured from a glass reinforced nylon composite - High strength and light weight
• Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
• Chemical resistant - Impervious to diesel, petrol and antifouling paints
• UV resistant - Will not break down with ultraviolet light or discolour from the sun
• High quality surface finish - Will not discolour with green film as similar bronze fittings do
• Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C

Specification:

• SKU: 90893
• T-Piece Connector 1½" BSP M-F-F
