Transducer Garmin GT15M-IH 010-12402-00

Transducer Garmin GT15M-IH 010-12402-00

The Garmin GT15M Transducer is an eight-pin transducer designed to provide chartplotters and fishfinders with clear bottom definition and excellent target separation. It features mid-band CHIRP traditional sonar with 85 kilohertz up to 165 kilohertz operating frequencies. It ensures accurate depth and temperature (GT15M-TM) readings up to 1,900 feet deep even at high speeds.

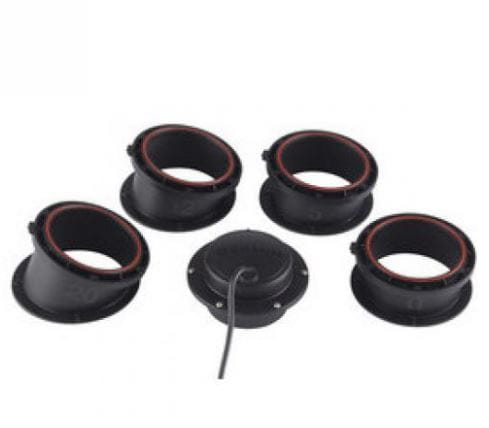

The Garmin GT15M Transducer offers two package options to support both transom mounting and installing inside a fiberglass hull. It includes four plastic tanks for in-hull installation that accommodate up to 25-degree deadrise or a transom mount that allows transom angles ranging from 0 degree up to 70 degrees. It has power rating of 600 watts and 24-degree through 13-degree beamwidth.

Configuration Options

The Garmin GT15M Transducer comes in two mounting style options to provide versatility. Please select your preference from the menu above.

• Choice of 2 mounting styles
• Mid-band CHIRP traditional sonar (85 – 165 kHz)
• 8-pin connector
• 600W power rating
• Beam width: 24° – 13°
• Maximum depth: 1,900 ft. freshwater
• Supports 0° to 25° deadrise or 0° to 70° transom angles
• Clear bottom definition and excellent target separation
• Accurate depth reading
• Includes 4 plastic tanks or transom mount

Specification

General:

• Frequency: CHIRP Mid-band (85 - 165 kHz)
• Power Rating: 600W
• Beamwidth: 24 - 13
• Maximum Depth Capacity: 1,900 ft. freshwater
• Number of Pins: 8-pin
• Cable Length: 20 ft.Supported Deadrise/Transom Angles: 0° - 25° deadrise (010-12402-00) / 0° - 70° degree transom (010-12402-10)

Function:

• Speed: N/A
• Depth: Yes
• Temperature: N/A (010-12402-00) / Yes (010-12402-10)
