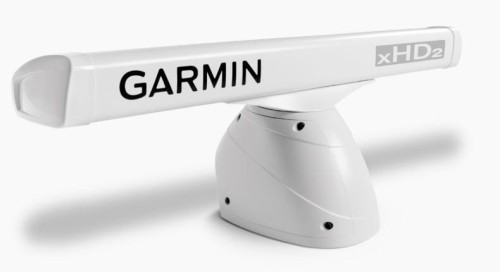

Radar GMR 1224 xHD2 Garmin K10-00012-11
Regular price:
product unavailable
Description
Radar GMR 1224 xHD2 Garmin K10-00012-11
Open Array Radar and Pedestal.
- SKU: K10-00012-11
4’ OPEN-ARRAY RADAR WITH 12 KW OF POWER
This high-definition open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited or no-visibility conditions — especially on yachts and sport fishing boats under 40’.
- Serious seafarers like you need serious range — up to 72 nautical miles.
- See targets in incredible detail, even at a distance.
- Easily see what’s close and far away with dual-range radar.
- Don’t waste time fussing with complex settings. This radar is easy to install.
- Say goodbye to noise pollution. This radar rotates quietly.
PULSE EXPANSION
Increase the duration of the transmit pulse, which helps maximize the energy on targets. This provides larger target size on the chartplotter.
AUTO BIRD GAINLocate flocks of birds at the water’s surface where baitfish are also likely to be found.
ECHO TRAILSA historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
DUAL RANGESingle radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.
DUAL-RADAR SUPPORTUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAINGain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
DYNAMIC SEA FILTERGain automatically adjusts sea clutter for calm, medium and rough sea conditions.
RADAR OVERLAYOverlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKINGMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping you keep track of other vessels and avoid collisions.
GUARD ZONESet the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBLVariable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
DUAL RANGE WITH OVERLAYSingle radar antenna is capable of providing split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.
Specification:
- SKU: K10-00012-11
| DIMENSION |
4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm) Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm) |
|---|---|
| WEIGHT |
array: 12.2 lb (5.5 kg) pedestal: 47.1 lb (21.4 kg) |
| WATERPROOF | IPX6 |
| MAX WIND LOAD | 80kt |
| ANTENNA LENGTH | 48" (121.92 cm) |
| ROTATION SPEED (RPM) | 24 and 48 rpm |
| BEAM WIDTH | 1.8° horizontal, 23° vertical |
| MAX RANGE | 72 nm |
| MINIMUM RANGE | 20 meters |
| RADAR TYPE | Open-Array |
Electrical Features |
|
| POWER INPUT | 10-32 V DC |
|---|---|
| TRANSITION POWER | 12 kW |
Radar Features |
|
| DUAL RANGE SUPPORT | V |
|---|---|
| RADAR OVERLAY SUPPORT | V |
| DUAL RADAR | V |
| AUTOBIRD | V |
| DYNAMIC AUTO GAIN | Dynamic |
| MARPA TARGET TRACK | yes (requires heading sensor, sold separately) |
| ECHO TRAIL | V |
| PROGRAMMABLE ANTENNA PARKING | V |
| TARGET SIZE | Pulse Expansion |
