Grey water discharge system 12 V Vetus GWDS12
Regular price:
product unavailable
Description

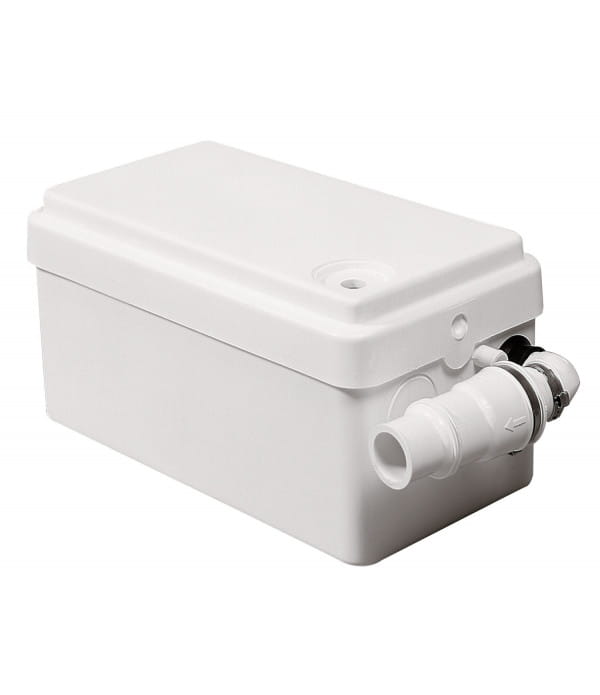

Grey water discharge system 12 V Vetus GWDS12

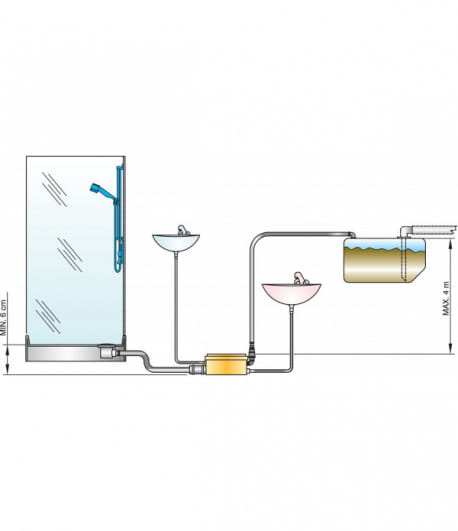

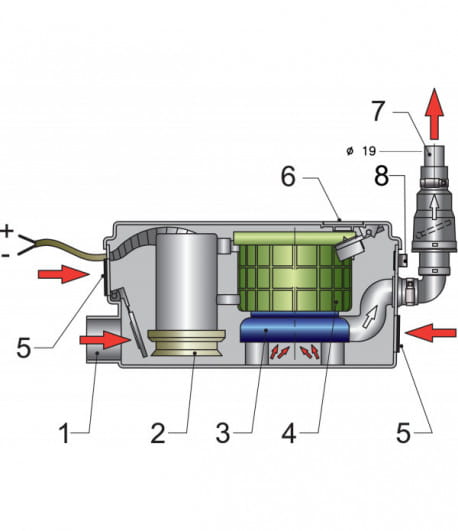

The GWDS consists of a watertight housing with a discharge pump and automatic float switch. The pump produces very low noise. A non-return valve is fitted in the discharge line. The bottom of the GWDS assembly must be at least 6 cm below the shower tray or washbasin outlet.
The waste water tank can be located up to 4 metres above the GWDS unit or up to 20 metres away from it. Instead of pumping the waste water into the holding tank, it can of course also be discharged directly overboard. If the system becomes clogged, the housing cover can be easily removed to clear the blockage.
TECHNICAL SPECIFICATIONS
- Voltage: 12 Volt
- Nominal power consumption: approx. 340W (12V).
- Dimensions: 300 x 165 x 145 mm (l x w x h)
- Pump output: Approx. 44 litres/min.
- Outlet discharge to holding tank: ø 19 mm
- Inlet connections from shower or washbasin: ø 32 or 40 mm
- Weight: 3.5 kg
- Maximum permissible water temperature: 35° C.
