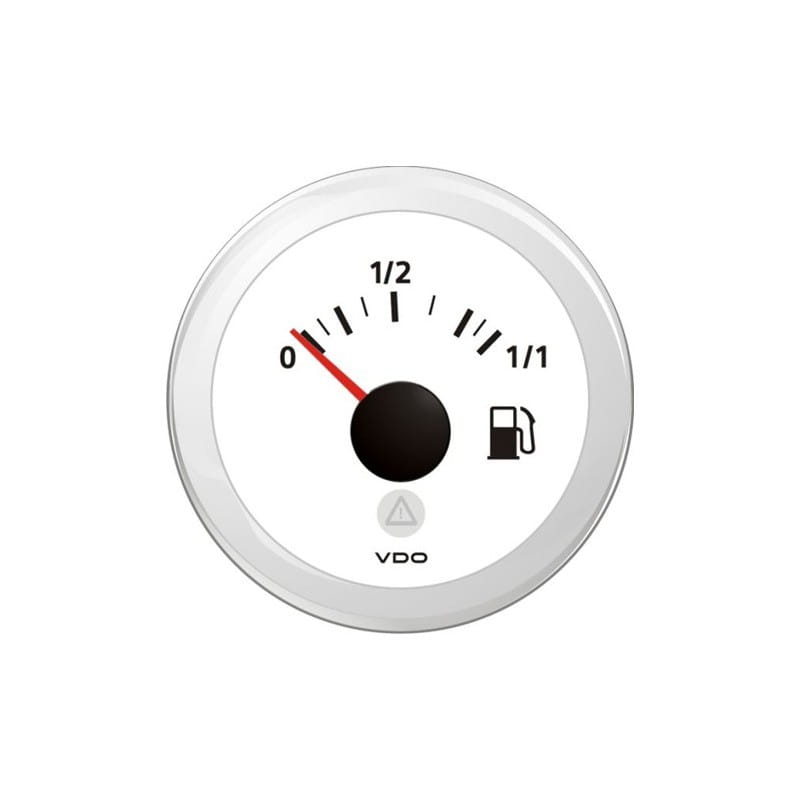

Fuel Level 3-180 Ohm White 52mm VDO A2C59514184
Regular price:
product unavailable
Description
Fuel Level 3-180 Ohm White 52mm VDO A2C59514184
- SKU: A2C59514184
- Weight: 0.45 kg

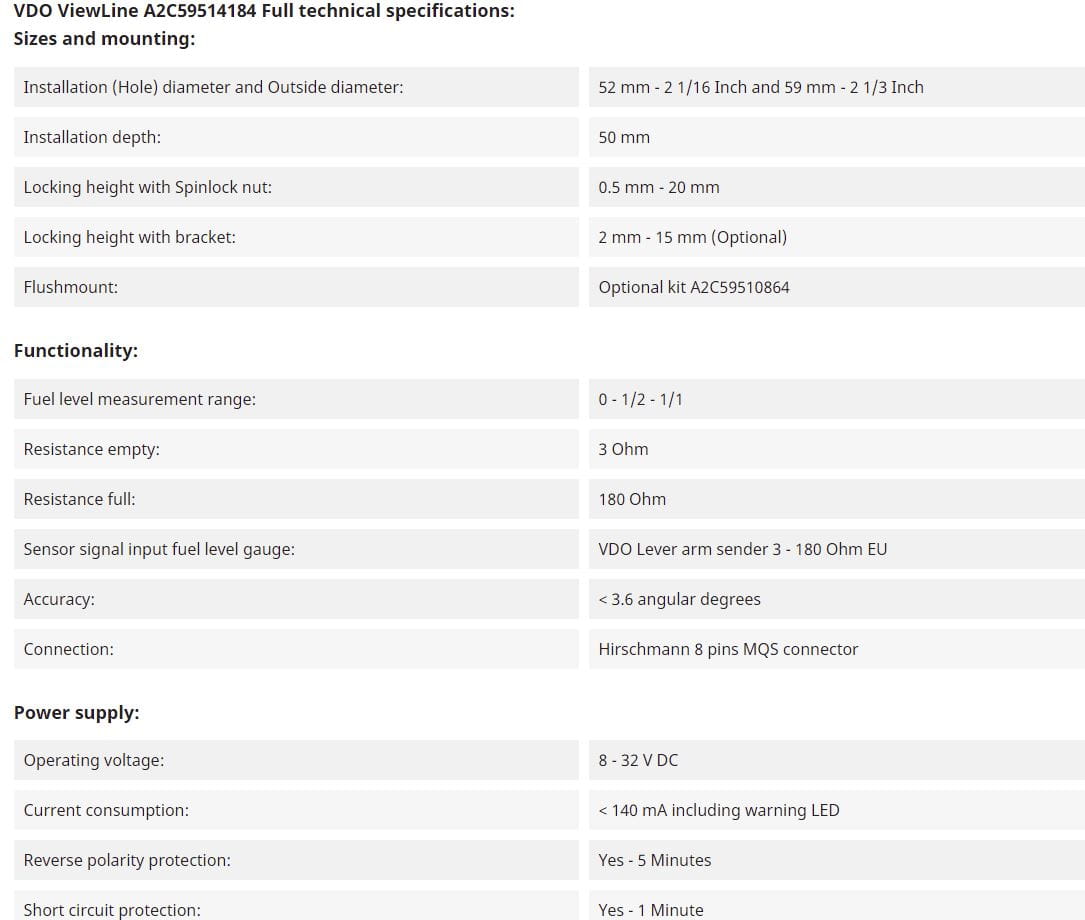

- Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
- Installation depth: 50 mm
- Locking height with Spinlock nut: 0.5 mm - 20 mm
- Locking height with bracket: 2 mm - 15 mm (Optional)
- Flushmount: Optional kit A2C59510864
- Fuel level measurement range: 0 - 1/2 - 1/1
- Resistance empty: 3 Ohm
- Resistance full: 180 Ohm
- Sensor signal input fuel level gauge: VDO Lever arm sender 3 - 180 Ohm EU
- Accuracy: < 3.6 angular degrees

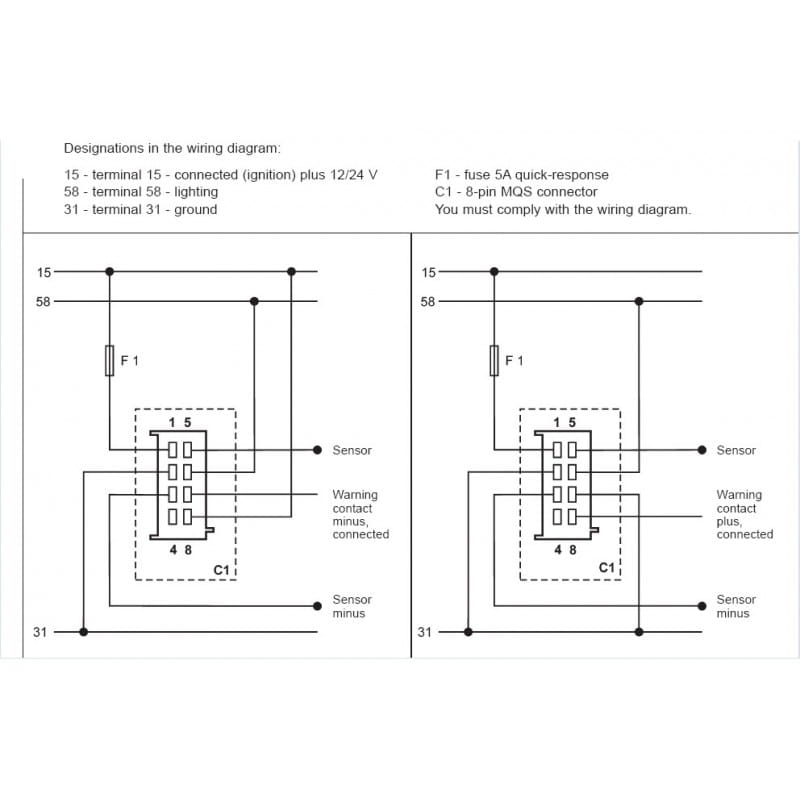

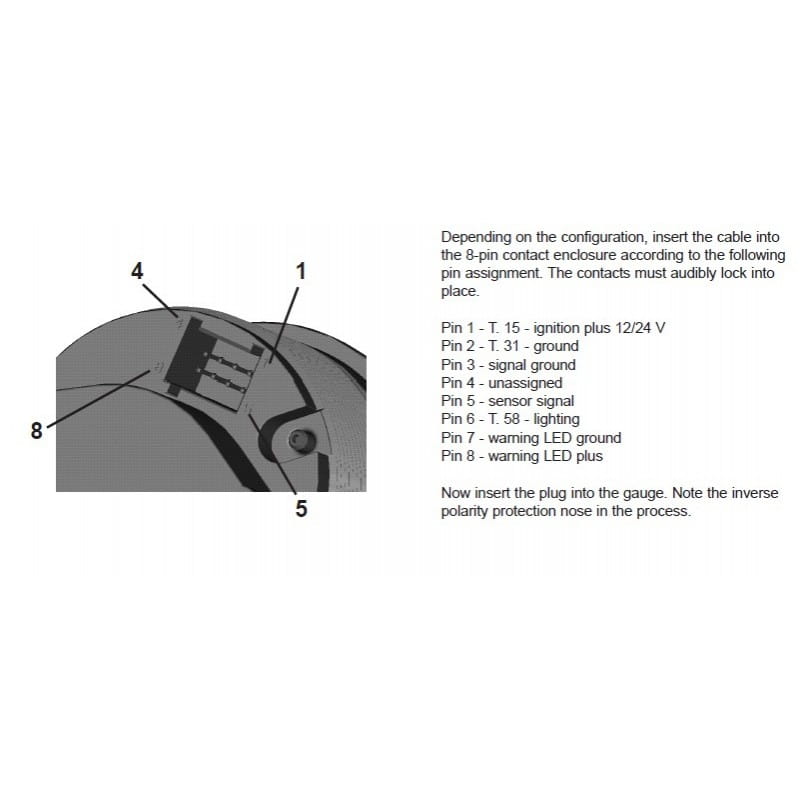

- Connection: Hirschmann 8 pins MQS connector
- Operating voltage: 8 - 32 V DC
- Current consumption: < 140 mA including warning LED
- Reverse polarity protection: Yes - 5 Minutes
- Short circuit protection: Yes - 1 Minute

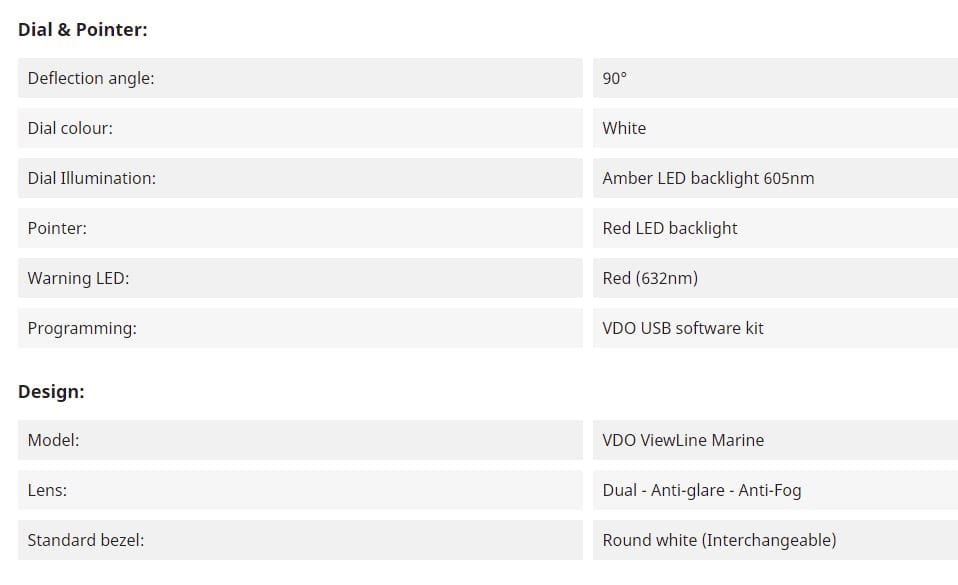

- Deflection angle: 90°
- Dial colour: White
- Dial Illumination: Amber LED backlight 605nm
- Pointer: Red LED backlight
- Warning LED: Red (632nm)
- Programming: VDO USB software kit
- Model: VDO ViewLine Marine
- Lens: Dual - Anti-glare - Anti-Fog
- Standard bezel: Round white (Interchangeable)

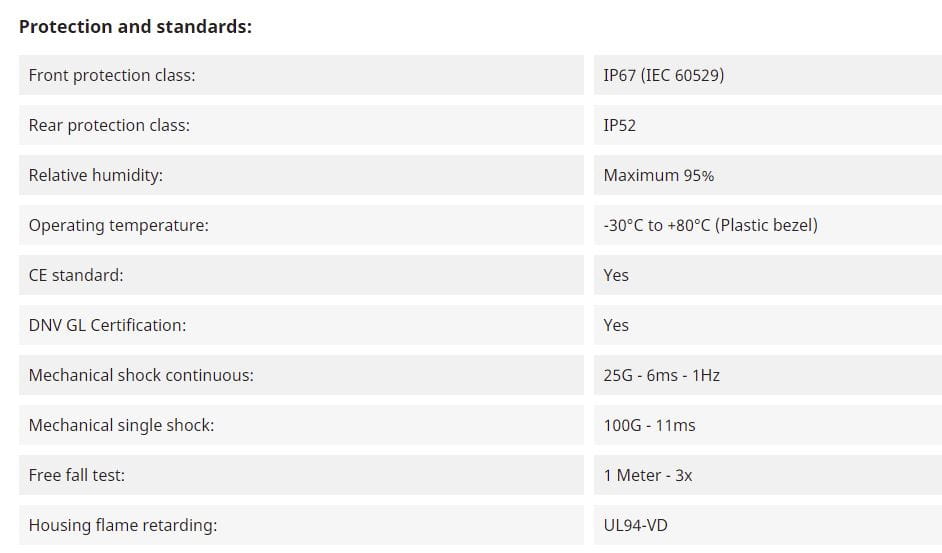

- Front protection class: IP67 (IEC 60529)
- Rear protection class: IP52
- Relative humidity: Maximum 95%
- Operating temperature: -30°C to +80°C (Plastic bezel)
- CE standard: Yes
- DNV GL Certification: Yes
- Mechanical shock continuous: 25G - 6ms - 1Hz
- Mechanical single shock: 100G - 11ms
- Free fall test: 1 Meter - 3x
- Housing flame retarding: UL94-VD
