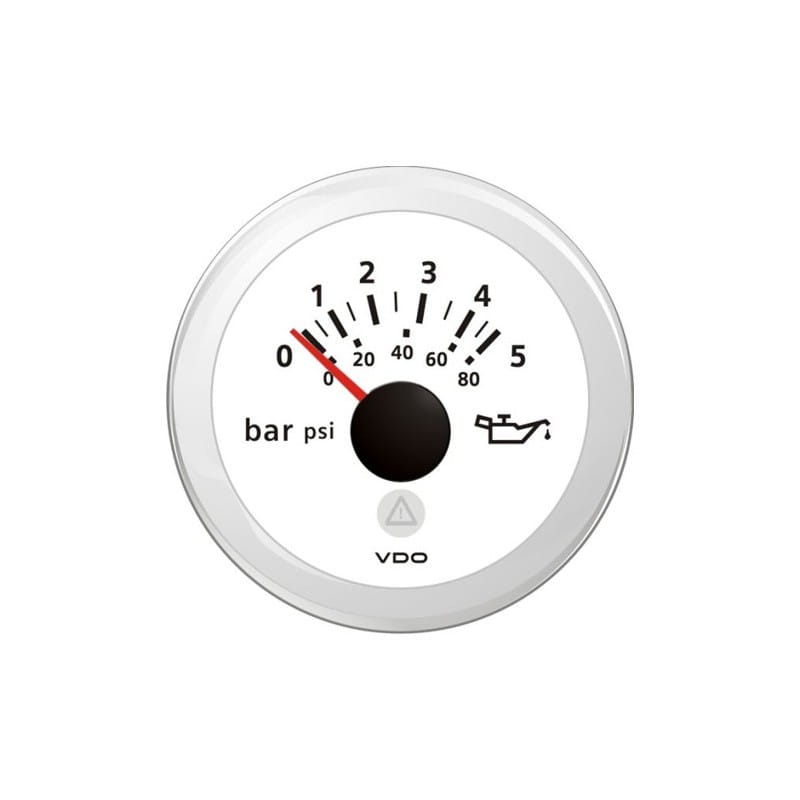

Engine Oil Pressure 5Bar White 52mm VDO-A2C59514211

Engine Oil Pressure 5Bar White 52mm VDO-A2C59514211

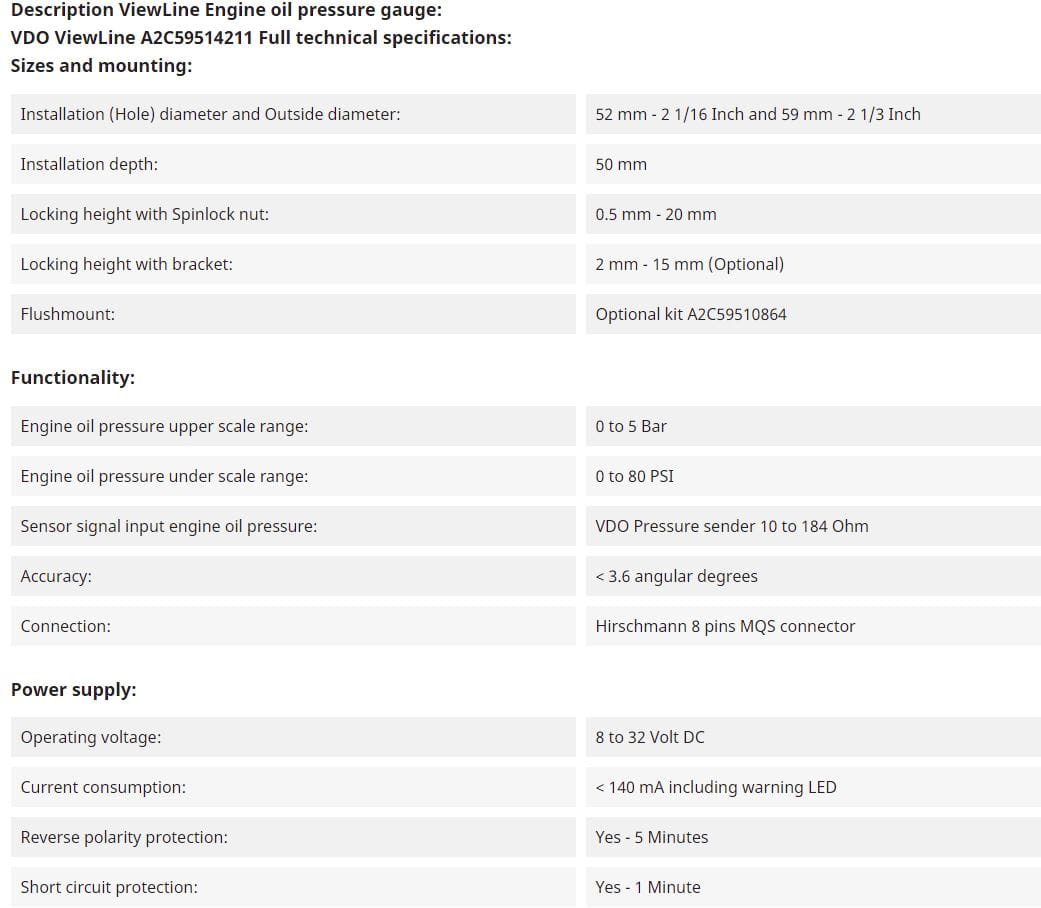

Specification:

• SKU: A2C59514211
• Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
• Installation depth: 50 mm
• Locking height with Spinlock nut: 0.5 mm - 20 mm
• Locking height with bracket: 2 mm - 15 mm (Optional)
• Flushmount: Optional kit A2C59510864
• Engine oil pressure upper scale range: 0 to 5 Bar
• Engine oil pressure under scale range: 0 to 80 PSI
• Sensor signal input engine oil pressure: VDO Pressure sender 10 to 184 Ohm
• Accuracy: < 3.6 angular degrees

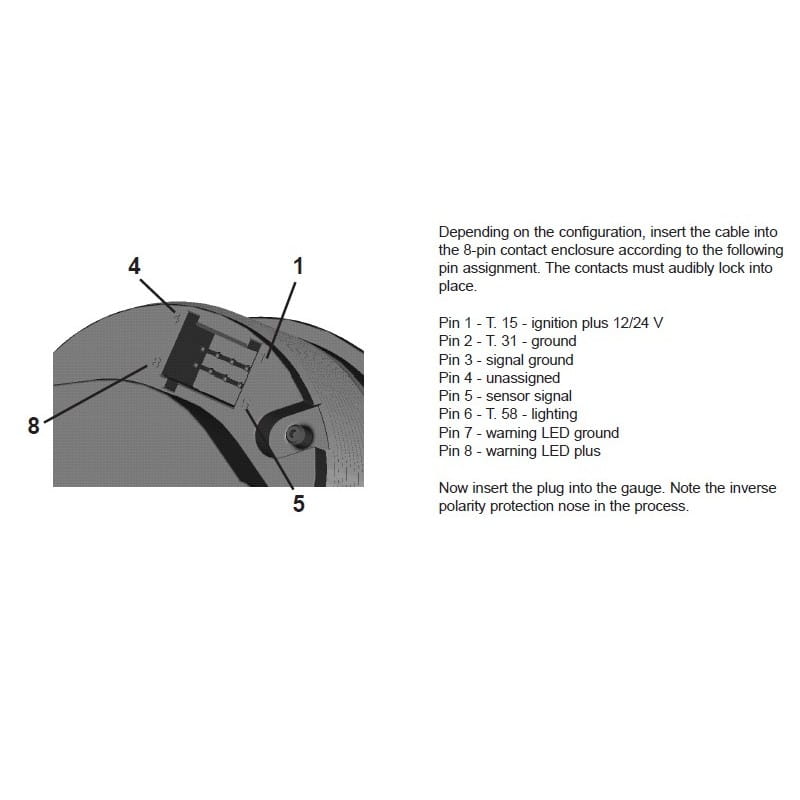

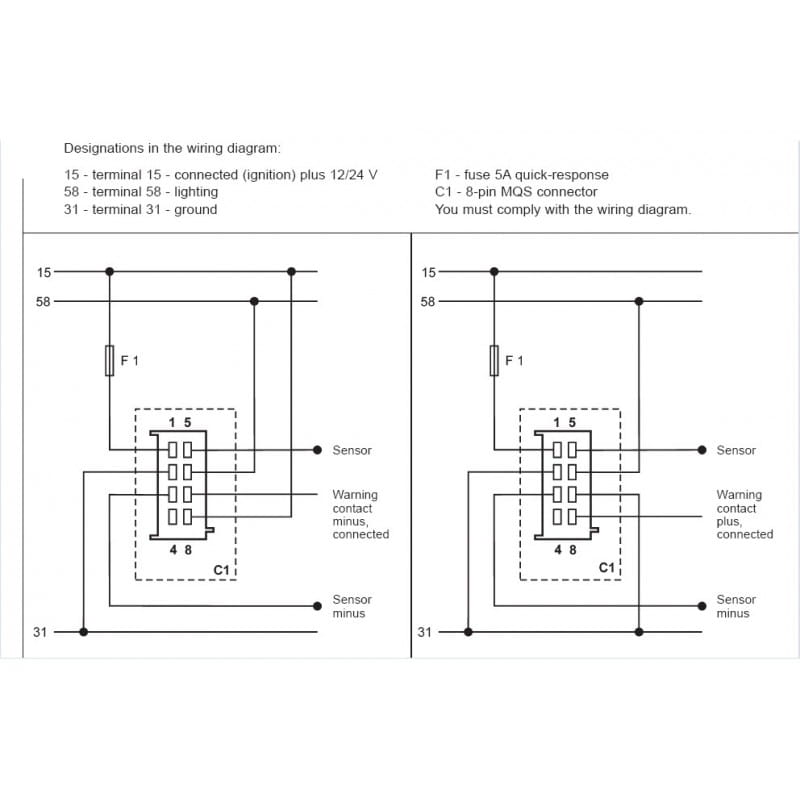

• Connection: Hirschmann 8 pins MQS connector
• Operating voltage: 8 to 32 Volt DC
• Current consumption: < 140 mA including warning LED
• Reverse polarity protection: Yes - 5 Minutes
• Short circuit protection: Yes - 1 Minute

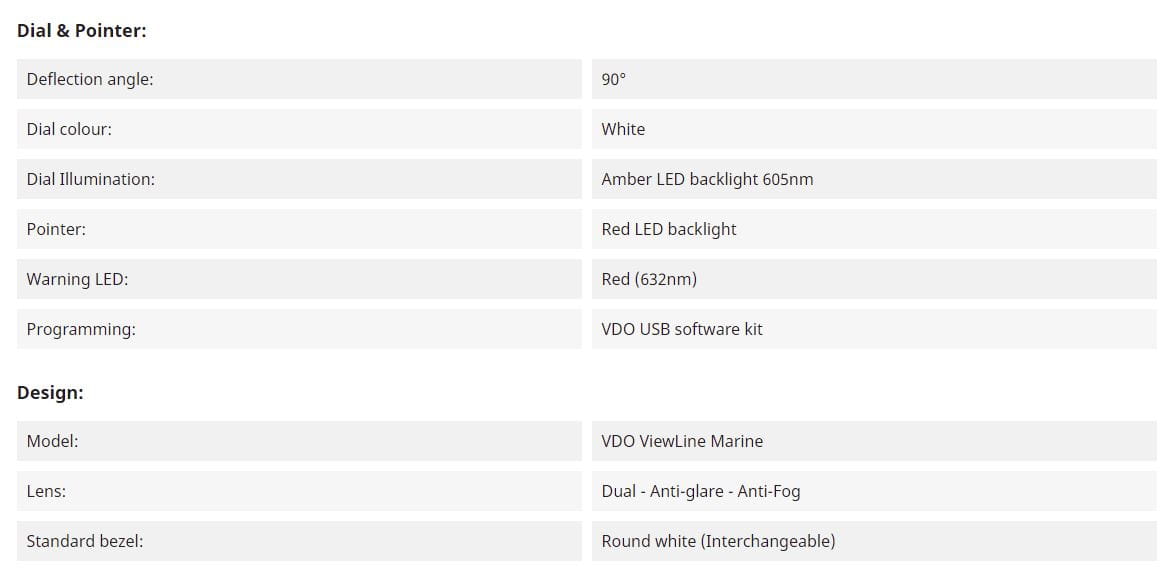

• Deflection angle: 90°
• Dial colour: White
• Dial Illumination: Amber LED backlight 605nm
• Pointer: Red LED backlight
• Warning LED: Red (632nm)
• Programming: VDO USB software kit
• Model: VDO ViewLine Marine
• Lens: Dual - Anti-glare - Anti-Fog
• Standard bezel: Round white (Interchangeable)

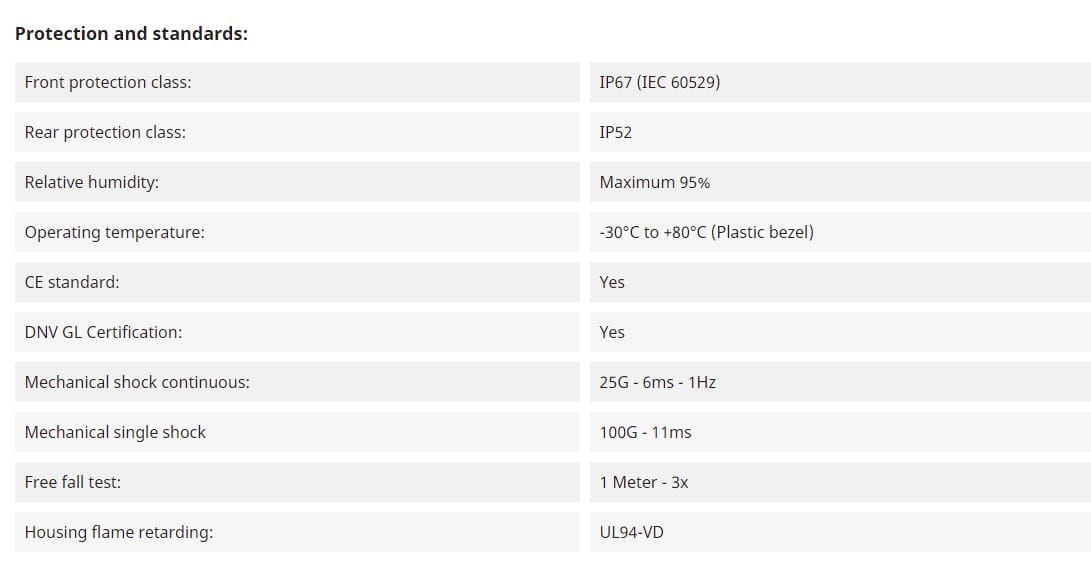

• Front protection class: IP67 (IEC 60529)
• Rear protection class: IP52
• Relative humidity: Maximum 95%
• Operating temperature: -30°C to +80°C (Plastic bezel)
• CE standard: Yes
• DNV GL Certification: Yes
• Mechanical shock continuous: 25G - 6ms - 1Hz
• Mechanical single shock 100G - 11ms
• Free fall test: 1 Meter - 3x
• Housing flame retarding: UL94-VD
