Dynamic trim Kit Box 300 S Chine Zipwake 2011732
Regular price:
product unavailable
Description
Zipwake KB300-S Chine Kit - Dynamic Trim Control System - 2011732 (0580120)
Incl. 2 x 300mm Interceptors + Control Panel
Capacity to Add Extra Interceptors for More Control (Optional)
Zipwake delivers a more comfortable ride, better performance and improved fuel consumption. Dynamically eliminates uncomfortable and dangerous boat pitch and roll. Zipwake Interceptor trim tabs for your boat are extremely high build quality, fully automatic, and modular for easy and expandable installation. Zipwake Series S, the world’s first inexpensive dynamic trim-control system, incorporates a state-of-the-art family of durable, fast-acting interceptors.
The system is fully automatic. It significantly enhances the boat’s performance, fuel economy, comfort and safety when accelerating, turning or running in a seaway.

- Dynamically eliminates uncomfortable and dangerous boat pitch and roll.
- Automatically minimizes wave resistance and saves fuel.
- Built-in quality, simplicity and easy expansion, yet still affordable.
- Innovative 3D controls provide unmatched control of running trim, heel or heading
- Patented series of durable fast-acting interceptors provide supreme lift force characteristics.
- All-inclusive mass-produced modular design provides built-in quality, simple installation and easy expansion, whilst making the system affordable.
Includes:

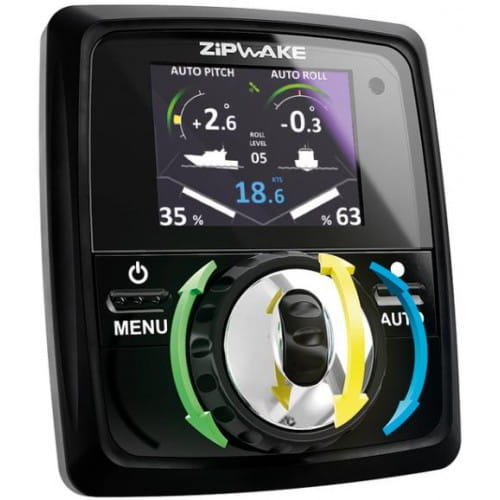

- 1 x Control Panel (incl. 7m Cable)
- 1 x Distribution Unit
- 2 x 300mm Chine Interceptor (incl. 3m Cable)
- Cable Covers

- Model:
- IT300-S CHINE PORT
- IT300-S C CHINE STBD
- IT450-S CHINE PORT
- IT 450-S CHINE STBD
- Length: 300 (12) / 300 (12) / 450 (18) / 450 (18) / 450 (18) / mm (in)
- Weight: 2.2(4.9) 2.2 (4.9) 2.9 (6.4) 2.9 (6.4) kg (lbs)
- Max. Boat Speed: 60 knots
- Blade Stroke: 30 mm (1.2 in)
- Blade Rate: 20 mm/s (0.8 in/s)
- Thru-Hull Cable Fitting: Concealed or above waterline
- Servo actuator: SU-S
- Cable Length: 3 m (10 ft), extendable up to 6 m (20 ft)
- Cable Material: PUR
- Connector: M12 5-pin circular
- Connector Diameter: 14.5 mm (0.57 in)
- Supply Voltage: 12 - 32 V DC
- Power Consumption: 25 W max
- Operating Temperature: 0° to +40°C (+32° to +104°F)
- Storage Temperature: -40° to +90°C (-40° to +194°F)
- Waterproof Rating: IP68 5 m (16 ft)
- Compliance: CE, FCC
- Connector Diameter: 14.5 mm (0.57 in)

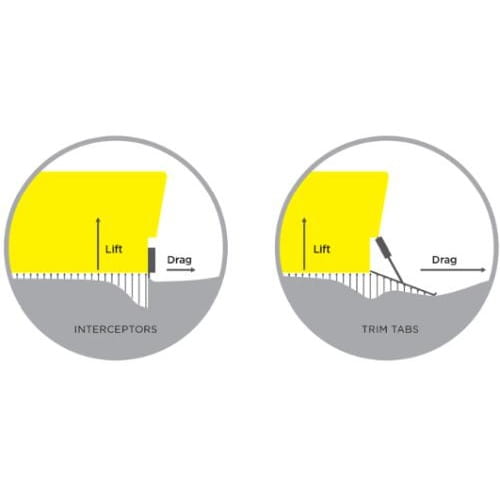

- MORE EFFICIENT LIFT -Near full beam interceptor arrangements are much more efficient at making lift compared to trim tabs with narrow span.
- LESS DRAG -Zipwake’s interceptor blade extends just 30 mm, whereas trim tabs often project 150 mm reflecting substantial drag.
- 5 TIMES FASTER ACTUATION -Zipwake’s blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.
- LESS WAKE -Interceptors provide more effective trim control creating less waves which directly leads to better fuel economy.
