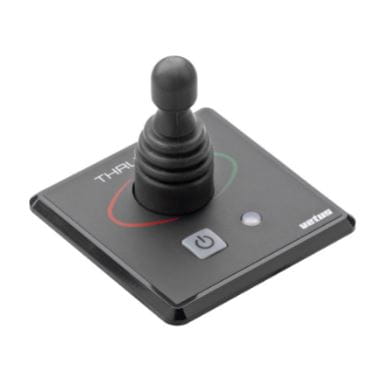

Bow thruster panel with joy-stick and time delay Vetus BPJE2

Bow thruster panel with joy-stick and time delay Vetus BPJE2

Single joystick panel for operating a Vetus Bow or Stern Thruster. Supplied with Vetus quick connectors for BP29 series loom cables - including provision for easy daisy chaining of additional controls at second or third control positions.

Key features:

• Protected against accidental or unauthorized operation.
• Panel power on indicator.
• Warning LED and buzzer in the event of continuous running for more than 2 minutes
• Control circuit overload protection.
• Watertight to IP 65.
• Built-in time lapse device when reversing the direction of rotation.
• Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation
• In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds.

Specifications:

• SKU: BPJE2
• Child protection: Yes
• Purpose: Thurster control
• Sort control: Joystick
• Proportional control: No
• V-CAN: No

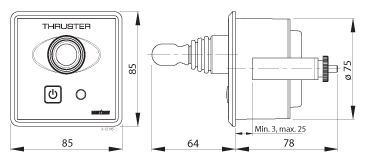

• Build-in depth (mm): 90
• Bezel: Synthetic
• Width (mm): 85
• Cut-out diameter (mm): 75
• Height (mm): 85
